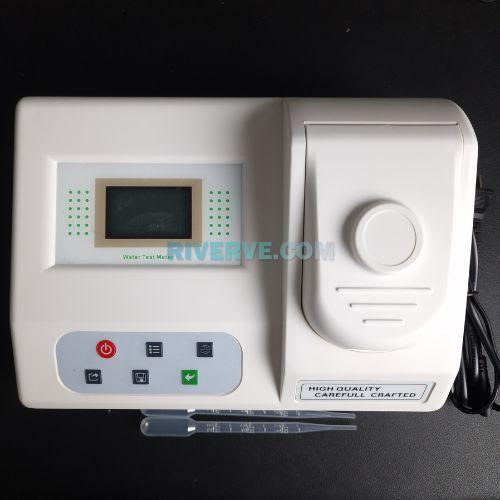

Chemical Oxygen Demand COD Meter for Water Quality Testing

Alat ini membutuhkan COD Digester
https://www.tokopedia.com/riverve/cod-meter-plus-cod-digster-chemical-oxygen-demand-1730921934081984165

Chemical Oxygen Demand (COD) is the amount of oxidant consumed when a certain strong oxidant is used to treat a water sample under certain conditions. It is an indicator of the amount of reducing substances in water.
This instrument uses a special reagent which contains a compound catalyst that both accelerates the reaction and has an anti-interference effect on the chloride ions. The water sample undergoes a rapid redox reaction with the special reagent in the digester, which produces trivalent chromium ions, the concentration of which is determined spectrophotometrically to give the corresponding COD value.



Product parameters


Method :

Rapid Catalytic Method(CR)

Measuring range :

Low range: 0~150mg/L High range: 100~1000mg/L

Dilution determination at greater than 1000 mg/L

Measurement error :

5~100 mg/L, Absolute error≤±5 mg/L

100 mg/L~1000 mg/L, Relative error≤±5 %

Digestion temperature :

165 ± 1℃

Digestion time :

15min

Measurement time :

30 minutes simultaneously measured 9, 12 or 25 water samples; (depending on the number of different water samples)

Temperature error :

<± 1℃

Dissolution time error :

≤ ± 2%

Record storage :

Storage of 20 measurement results

Ambient temperature :

5 ~ 40 ℃

Ambient humidity :

Relative humidity < 85% (no condensation)

Power supply :

AC220V + 10% / 50Hz
