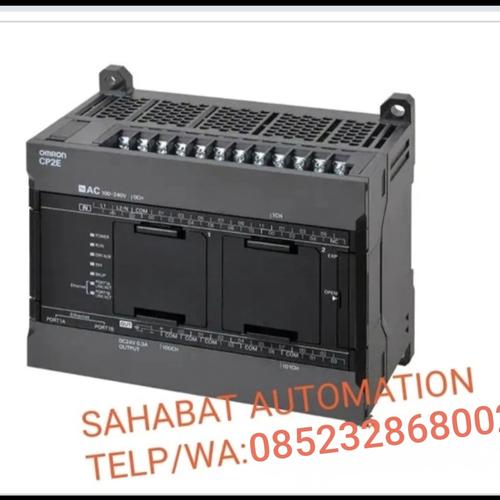

PLC OMRON CP2E-N30DR-A

Omron PLC Network Model CP2E-N30DR-A :
Power Supply : 100-240VAC
Inputs : 18 points
Output : 12 points relay
Program capacity : 10K steps (FB capacity: 10K steps)
Data memory capacity : 16K words

Ethernet : 2 port
Physical layer : 100/10BASE-TX (Auto-MDIX)
Media access methiod : CSMA/CD
Modulation : Baseband
Baud rate : 100BASE-TX: 100Mbit/s
10BASE-T: 10Mbit/s
• Half/full auto-negotiation for each port
• Link speed auto-sensing for each port
Transmission media : 100BASE-TX
• Unshielded twisted-pair (UDP) cable Categories: 5, 5e
• Shielded twisted-pair (STP) cable Categories: 100Ω at 5, 5e 10BASE-T
• Unshielded twisted-pair (UDP) cable Categories: 3, 4, 5, 5e
• Shielded twisted-pair (STP) cable Categories: 100Ω at 3, 4, 5, 5e
Transmission distance : 100 m (distance between switch and node)
Protocol : TCP, UDP, APR, ICMP (ping only), SNTP, DNS
Applications : FINS, Socket, SNTP, DNS (Client)
Number of Ethernet ports : N14/20: 1 port, N30/40/60: 2 ports
Ethernet switch : Layer 2 switch * N14/20 is not supported.

High-speed counter mode/
maximum frequency :
Incremental Pulse Inputs : 100 kHz: 2 counters
10 kHz: 4 counters
Up/Down Inputs : 100 kHz: 1 counter
10 kHz: 1 counter
Pulse + Direction Inputs : 100 kHz: 2 counters
Differential Phase Inputs (4x) : 50 kHz: 1 counter
5 kHz: 1 counter
