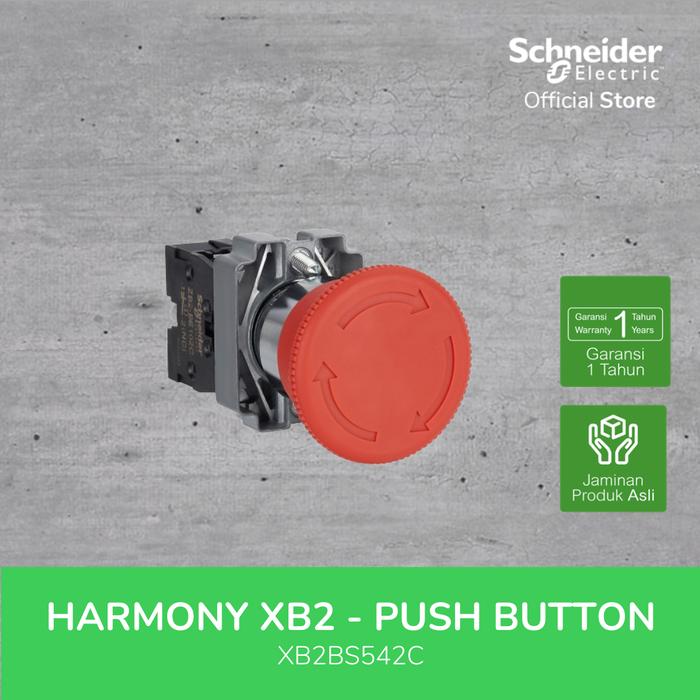

Schneider Electric Emergency Switch Push Button , 22MM XB2 Red 1 N/C - XB2BS542C
Rp82.607
diskon 46%
Harga sebelum diskon Rp153.263
- Kondisi: Baru
- Min. Pemesanan: 1 Buah
- Etalase: XB2
Tombol tekan lengkap ini menyediakan antarmuka ergonomis untuk mengendalikan marchine Anda. Ini mudah dipasang dan dimasukkan ke dalam potongan panel standar berdiameter 22 mm dan dihubungkan ke sirkuit kontrol dengan sambungan sekrup-penjepit klasik.
Main :
Range of product : Easy Harmony XB2
Product or component type : Complete emergency switching off push-button
Device presentation : Complete product
Device short name : XB2
Bezel material : Chromium plated metal
Fixing collar material : Zamak
Mounting diameter : 22.5 mm
Sale per indivisible quantity : 1
Head type : Mushroom
Operating position : Any position
Device mounting : Fixing hole - diameter: 22.5 mm
Fixing center : >= 30 x 40 mm (1...6 mm thick panel) - thickness: 1…5 mm
Fixing mode : Fixing screw beneath head recommended torque: 0.8 N.m
Fixing screw beneath head recommended torque: 1.0 N.m
Shape of signaling unit head : Round
Type of operator : turn to release
Reset : Turn to release
Operator profile : Red mushroom Ø 40 mm, unmarked
Terminals description ISO n°1 : (11-12)NC
Cap/operator or lens colour : Red
Product compatibility : ZB2..C
Contacts type and composition : 1 NC
Contact operation : Slow-break
Contacts usage : Standard contacts
Positive opening : With NC contact conforming to IEC 60947-5-1 appendix K
Operating travel : 2.0 mm (NC changing electrical state)
5.0 mm (total travel)
Connections - terminals : Screw clamp terminals, <= 2 x 1.5 mm² with and without cable ends
Screw clamp terminals, <= 1 x 2.5 mm² with and without cable ends
Screw clamp terminals, >= 1 x 0.5 mm² with and without cable ends
Faston terminals, connection size: 6.3 mm
[Ith] conventional free air thermal :current10 A conforming to IEC 60947-5-1
[Ui] rated insulation voltage : 600 V (pollution degree 3) conforming to IEC 60947-1
[Uimp] rated impulse withstandvoltage : 6 kV conforming to IEC 60947-1
[Ie] rated operational current : 3 A at 240 V, AC-15, A600 conforming to IEC 60947-5-1
0.27 A at 250 V, DC-13, Q600 conforming to IEC 60947-5-1
Height : 40 mm
Width : 40 mm
Depth : 74.5 mm
Net weight : 0.095 kg
Main :
Range of product : Easy Harmony XB2
Product or component type : Complete emergency switching off push-button
Device presentation : Complete product
Device short name : XB2
Bezel material : Chromium plated metal
Fixing collar material : Zamak
Mounting diameter : 22.5 mm
Sale per indivisible quantity : 1
Head type : Mushroom
Operating position : Any position
Device mounting : Fixing hole - diameter: 22.5 mm
Fixing center : >= 30 x 40 mm (1...6 mm thick panel) - thickness: 1…5 mm
Fixing mode : Fixing screw beneath head recommended torque: 0.8 N.m
Fixing screw beneath head recommended torque: 1.0 N.m
Shape of signaling unit head : Round
Type of operator : turn to release
Reset : Turn to release
Operator profile : Red mushroom Ø 40 mm, unmarked
Terminals description ISO n°1 : (11-12)NC
Cap/operator or lens colour : Red
Product compatibility : ZB2..C
Contacts type and composition : 1 NC
Contact operation : Slow-break
Contacts usage : Standard contacts
Positive opening : With NC contact conforming to IEC 60947-5-1 appendix K
Operating travel : 2.0 mm (NC changing electrical state)
5.0 mm (total travel)
Connections - terminals : Screw clamp terminals, <= 2 x 1.5 mm² with and without cable ends
Screw clamp terminals, <= 1 x 2.5 mm² with and without cable ends
Screw clamp terminals, >= 1 x 0.5 mm² with and without cable ends
Faston terminals, connection size: 6.3 mm
[Ith] conventional free air thermal :current10 A conforming to IEC 60947-5-1
[Ui] rated insulation voltage : 600 V (pollution degree 3) conforming to IEC 60947-1
[Uimp] rated impulse withstandvoltage : 6 kV conforming to IEC 60947-1
[Ie] rated operational current : 3 A at 240 V, AC-15, A600 conforming to IEC 60947-5-1
0.27 A at 250 V, DC-13, Q600 conforming to IEC 60947-5-1
Height : 40 mm
Width : 40 mm
Depth : 74.5 mm
Net weight : 0.095 kg
