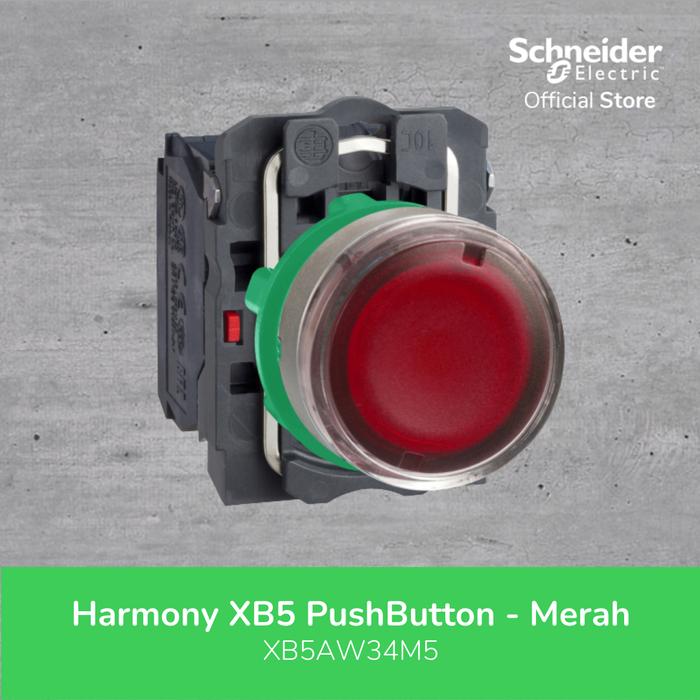

Schneider Electric XB5 PushButton 240VAC 1NO+1NC Merah - XB5AW34M5
Rp210.664
diskon 25%
Harga sebelum diskon Rp280.886
- Kondisi: Baru
- Min. Pemesanan: 1 Buah
- Etalase: Semua Etalase
Harmony XB5 ini, tombol tekan merah modular yang menyala beroperasi dengan mekanisme pengembalian pegas, dilengkapi dengan AC 220V hingga 240V, menggunakan LED integral dan terminal penjepit sekrup.
[Main]
1. Range of product : Harmony XB5
2. Product or component type : Illuminated push-button
3. device short name : XB5
4. Bezel material : Dark grey plastic
5. Fixing collar material : Plastic
6. Head type : Standard
7. Mounting diameter : 22 mm
8. Sale per indivisible quantity : 1
9. Type of operator : Spring return
10. Operator profile : Red flush, unmarked
11. Operator additional information : With plain lens
12. Contacts type and composition : 1 NO + 1 NC
13. Contact operation : Slow-break
14. Connections - terminals :
- Screw clamp terminals, <= 2 x 1.5 mm with cable end conforming to EN/IEC 60947-1
- Screw clamp terminals, 1 x 0.22...2 x 2.5 mm without cable end conforming to EN/IEC 60947-1
15. [Us] rated supply voltage : 230...240 V AC 50/60 Hz
16. Cap/operator or lens colour : Red
[Complementary]
17. Height : 42 mm
18. Width : 30 mm
19. Depth : 57 mm
20. Terminals description ISO n1 :
- (21-22)NC
- (13-14)NO
[Environment]
21. IP degree of protection :
- IP66 conforming to IEC 60529
- IP69
- IP69K
- IP67
22. Standards :
- JIS C8201-5-1
- EN/IEC 60947-5-4
- UL 508
- EN/IEC 60947-1
- CSA C22.2 No 14
- EN/IEC 60947-5-1
- JIS C8201-1
[Main]
1. Range of product : Harmony XB5
2. Product or component type : Illuminated push-button
3. device short name : XB5
4. Bezel material : Dark grey plastic
5. Fixing collar material : Plastic
6. Head type : Standard
7. Mounting diameter : 22 mm
8. Sale per indivisible quantity : 1
9. Type of operator : Spring return
10. Operator profile : Red flush, unmarked
11. Operator additional information : With plain lens
12. Contacts type and composition : 1 NO + 1 NC
13. Contact operation : Slow-break
14. Connections - terminals :
- Screw clamp terminals, <= 2 x 1.5 mm with cable end conforming to EN/IEC 60947-1
- Screw clamp terminals, 1 x 0.22...2 x 2.5 mm without cable end conforming to EN/IEC 60947-1
15. [Us] rated supply voltage : 230...240 V AC 50/60 Hz
16. Cap/operator or lens colour : Red
[Complementary]
17. Height : 42 mm
18. Width : 30 mm
19. Depth : 57 mm
20. Terminals description ISO n1 :
- (21-22)NC
- (13-14)NO
[Environment]
21. IP degree of protection :
- IP66 conforming to IEC 60529
- IP69
- IP69K
- IP67
22. Standards :
- JIS C8201-5-1
- EN/IEC 60947-5-4
- UL 508
- EN/IEC 60947-1
- CSA C22.2 No 14
- EN/IEC 60947-5-1
- JIS C8201-1
