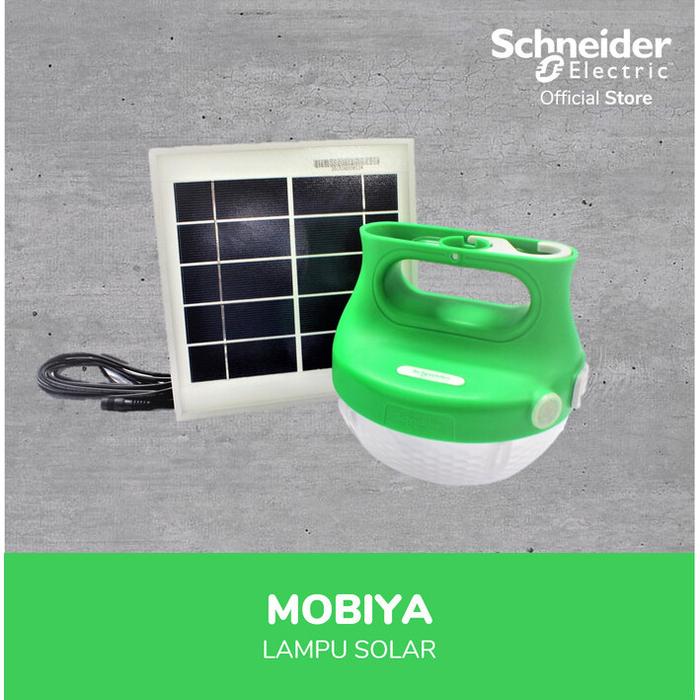

Schneider Electric Mobiya Lampu Solar - AEP-LB01-SU12W

1. product or component type : Portable solar lighting system
2. solar panel type : Polycrystalline
3. [Us] rated supply voltage : 5...24 V DC, solar panel
4. bulb type : 1 LED (1.2 W)
5. power range : 2.5 W
6. maximum rated voltage : 5 V for DC
7. luminous flux : -170 lm -85 lm -20 lm
8. light source colour : Warm white LED, colour temperature: 5000 K
9. signalling function : -Battery status charging green -Battery status full green -Battery status low red
10. operating time : -6 h at 170 lm -12 h at 85 lm -48 h at 20 lm
11. kit composition : -1 solar panel with cable, cable length: 5 m (AWG 24) -1 Multi port mobile charging cable
12. cable cross section : -0.20 mm - AWG 24
13. cable length : 5 m 2 core cable for between solar panel and DC input 14. battery capacity : 3 Ah at 3.2 V, LiFePO4
15. integrated connection type : -DC jack 5 V DC, maximum load current: 400 mA +/- 10 mA -USB port
16. width : -Lamp: 156 mm -Solar panel: 142 mm
17. depth : 16 mm
18. height : -Lamp: 142 mm -Solar panel: 185 mm
19. net weight : -0.45 kg LED unit -0.57 kg solar panel
