SKU KM3010/TEL0157

Introduction
Global Navigation Satellite Systems (GNSS) provide critical timing and positioning functions for device operations.
This Gravity GNSS positioning module from DFRobot supports both single and multiple systems positioning. It is capable of quick delivery of position data like longitude, latitude, altitude and time. Compared with traditional single GPS positioning, the multi-system combination embraces higher precision and faster speed thanks to the increased number of visible and available satellites, which ensures stable and accurate performance even in complex urban environments.

With I2C and UART data outputs, the GNSS positioning module works well with main-controllers like Arduino, ESP32, and Raspberry Pi. It is applicable to outdoor positioning scenarios such as vehicle navigation, handheld positioning tracker, item tracking and weather station.

Specification
Operating Voltage 3.3 to 5.5V DC
Output Signal I2C/UART
Positioning Accuracy 2.0m CEP
Time for First Positioning 30s for cold start; 2s for hot start
Power Consumption 40mA
Antenna Interface IPEX1
Antenna Frequency 1561-1575.42MHz±3MHz
Dimension 27mm×37mm/1.06×1.46


FEATURES
Supports both single and multiple systems positioning
Higher precision and faster speed than traditional single GPS positioning
More Stability
Ease of Use

SHIPPING LIST

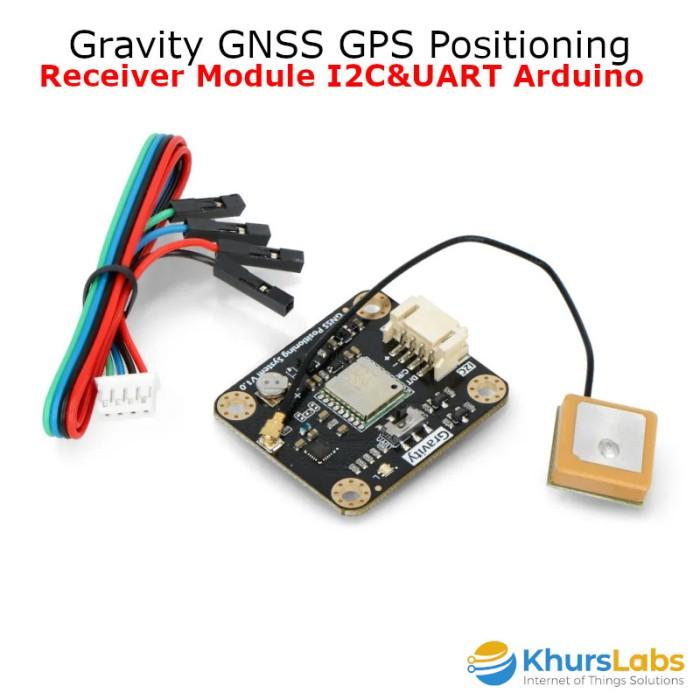

Gravity GNSS Positioning Module × 1
GPS/BeiDou Active Ceramic Antenna (IPEX1 Connector) × 1
Gravity 4P Sensor Cable × 1
