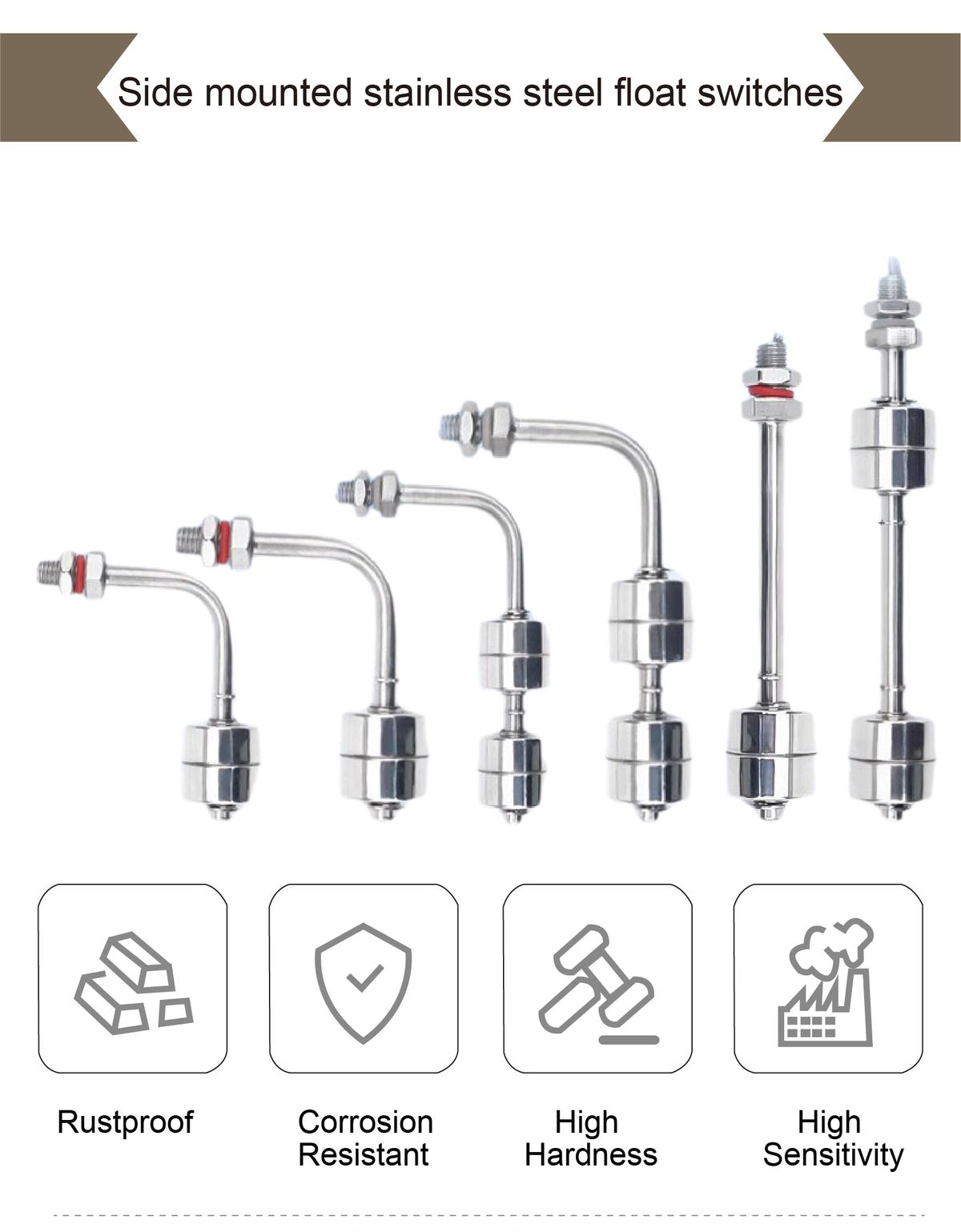

Waterproof Float Level Switch 304 Stainless Steel Side Mount Liquid Level Sensor Single & Dual Ball 0-220V - Single-200mm-304



1.NOTE:
Default Configuration:
o Float Type: Single float ball (dual float ball optional)
o Voltage: 0-220V
o Thread Size: M10*1.5
o Material: SS304 stainless steel
o Operating Temperature: -30 to 120C
o Cable Length:400mm,2-wire
o Waterproof Design: Sealed cable for enhanced protection
Customizable Options:
o Voltage: 0-110V
o Thread Size: M101, M101.25, etc.
o Material: SS316L
Special Requests: Some configurations may not be listed. Please contact us or leave a note during checkout for customization.
2.Parameters

Single float
Parameter
Specification
Reed Switch Type
1A / 12A1
Max Power
10VA / 50VA
Max Switching Voltage
100V AC/DC / 220V AC/DC
Max Switching Current
0.5A / 1.5A
Max Breakdown Voltage
110V AC/DC / 300V AC/DC
Max Load Current
1.0A / 3.0A
Max Contact Resistance
100mΩ
Ambient Temperature Range
-30~125 (304 Stainless Steel)
Liquid Temperature Range
-30~125 (304 Stainless Steel)
Dual float balls
Specification
Value
Reed Switch Type
1A / 12A1
Max Power
10W / 30W
Max Switching Voltage
100V AC/DC / 220V AC/DC
Max Switching Current
0.5A / 1.5A
Max Breakdown Voltage
110V AC/DC / 300V AC/DC
Max Load Current
1.0A / 3.0A
Max Contact Resistance
100MΩ
Operating Temperature (SU304)
-10 ~ +60
Operating Temperature (SS Material)
-30 ~ +125
Liquid Temperature (SU304)
-10 ~ +85
Liquid Temperature (SS Material)
-30 ~ +125
3. Features
Accurate Liquid Level Detection– Ensures precise and stable measurements. Durable Stainless Steel Construction– Corrosion-resistant and built for longevity. Wide Operating Temperature Range– Suitable for extreme industrial conditions. Reliable Reed Switch Mechanism– Provides consistent performance in various applications. Versatile Usage– Ideal for water, oil, and chemical level monitoring.
4.Applications
Water Treatment Systems– Monitors liquid levels in purification and filtration processes.Chemical Processing Plants– Ensures safe and accurate liquid control.Fuel & Oil Tanks– Detects fuel levels in industrial storage systems.Industrial Automation– Integrates with control systems for automated monitoring.Boilers & Storage Tanks– Prevents overflows and maintains system efficiency.
5.FAQs
Q1: Is this sensor suitable for use with corrosive liquids?A1: Yes, the stainless steel construction ensures resistance to most chemicals.
Q2: Can the sensor withstand high temperatures?A2: Yes, the stainless steel version operates in environments up to 125C.
