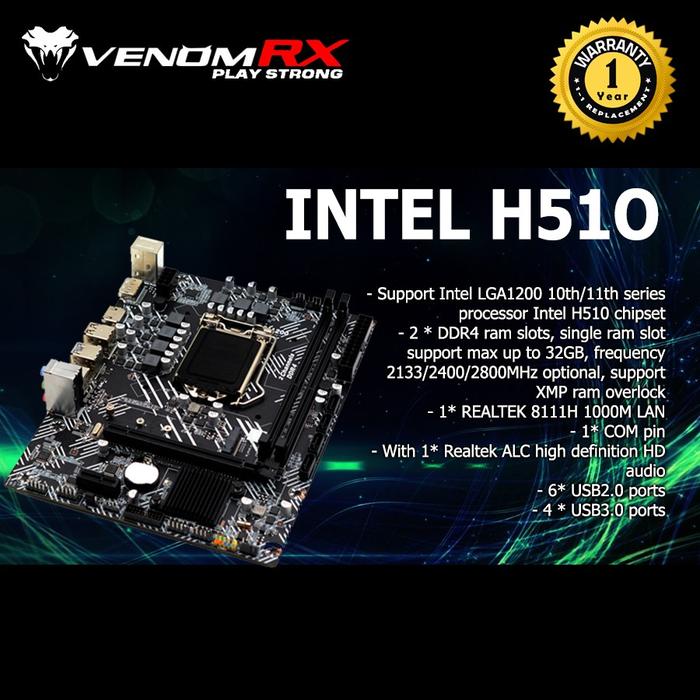

VenomRX H510 Motherboard Intel Chipset LGA1200 DDR4 Micro ATX mATX - Mainboard

Versi saat ini sudah support NVME Gen 3.0

OE H510 is a high performance motherboard with Intel H510 chipset
Support Intel LGA1200 10th/11th series processor
Intel H510 chipset
2 * DDR4 ram slots，single ram slot support max up to 32GB,
frequency 2133/2400/2800MHz optional, support XMP ram
overlock.
1* REALTEK 8111H 1000M LAN
1* COM pin
With 1* RealtelALC high definition HD auduio
6* USB2.0 ports，4 * USB3.0 ports

OS
CPU：Support Intel LGA1200 10th/11th series processor
Memory：2 * DDR4 ram slots，single ram slot support max up to
32GB, total support up to 64GB. frequency 2133/2400/2800MHz
optional, support XMP ram overlock.
Chipset：Intel H510 chipset

External interface
USB ：2*USB2.0，2*USB3.0
Keyboard&Mouse：1*PS/2
AUDIO：1*F_AUDIO
Expansion bus：1*COM pin
1*PCIE_16X slot
1*PCIE_1X slot

Audio
chip：RealtelALC independent high definition audio

Display
Display port：
1*HDMI , 1*DP
1*PCIE_16X graphic card display

Network
Lan chip：1*REALTEK 8111H 1000M LAN，support
wakeon lan and PXE function.

Onboard interface
2*F_USB pin
1*USB3.0 pin
1*F_AUDIO pin
1*J_SPK pin
1*JCMOS initial bios restore pin
1*CPU_FAN pin
2*CSYSFAN pin

Structure and Environment
Power Tpye：24pinATXPWR
1*8pin_ATXCPU
Working temperature：-10°C-60°C
Working humidity ：0-95% Relative humidity,
no condensation
Size：180mm x215mm

Garansi Resmi Indonesia
