Atur jumlah dan catatan
Stok Total: 165
Subtotal
Rp24.900

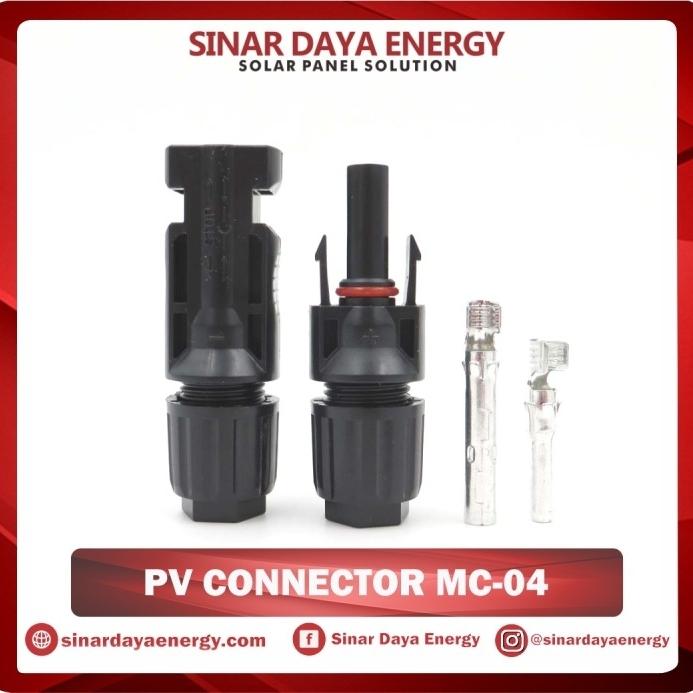

PV CONNECTOR MC-04 CONNECTOR 1000V 6MM SMC 4-6
Rp24.900
- Kondisi: Baru
- Min. Pemesanan: 1 Buah
- Etalase: Semua Etalase
Connector MC4 untuk panel surya digunakan sebagai sambungan kabel ke berbagai outlet.
Solar cable Connector
• Simple on-site processing.
• Acomodates PV cable with different insulation diameters.
• Mating safety provided bykeyed housings.
• Multiple plugging and unplugging cycles .
• High current carrying capacity.
• TUV and UL approved.
Spesifikasi :
Model : SMC4-6
Rated current : 30A (2.5-6mm2)
Rated voltage : 1000v DC
Test voltage : 6000V (50Hz, 1min)
Overvoltage type/pollution degree : CAT III / 2
Contact resistance of plug connector : 1mΩ
Contact material : Copper, Tin-plated
Insulation material : PPO
Degree of protection : IP2X/IP67
Flame class : UL94-VO
Safety class : II
Suitable cable OD 4.5-8.5 (2.5-6.0mm2)
Insertion force/withdrawal force ≤50N/≥50N
Connecting system : Crimp connection
Temperature range : -40 0C~+1250C
Solar cable Connector
• Simple on-site processing.
• Acomodates PV cable with different insulation diameters.
• Mating safety provided bykeyed housings.
• Multiple plugging and unplugging cycles .
• High current carrying capacity.
• TUV and UL approved.
Spesifikasi :
Model : SMC4-6
Rated current : 30A (2.5-6mm2)
Rated voltage : 1000v DC
Test voltage : 6000V (50Hz, 1min)
Overvoltage type/pollution degree : CAT III / 2
Contact resistance of plug connector : 1mΩ
Contact material : Copper, Tin-plated
Insulation material : PPO
Degree of protection : IP2X/IP67
Flame class : UL94-VO
Safety class : II
Suitable cable OD 4.5-8.5 (2.5-6.0mm2)
Insertion force/withdrawal force ≤50N/≥50N
Connecting system : Crimp connection
Temperature range : -40 0C~+1250C
