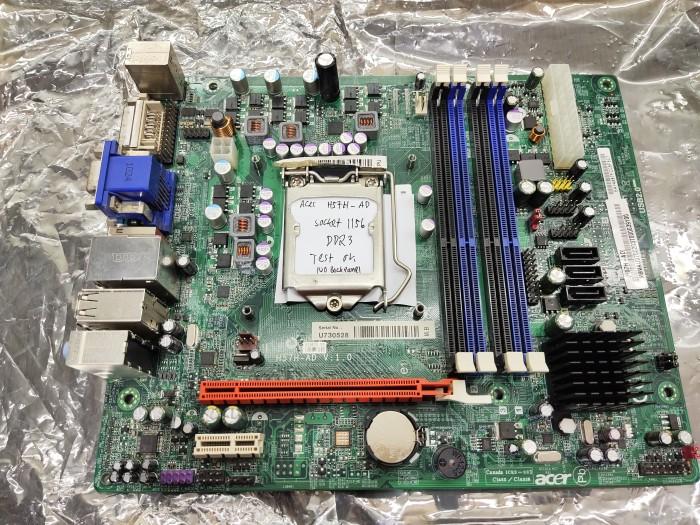

Acer H57H-AD Motherboard LGA-1156 ATX 24PIN-4PIN CI3.CI5.CI7 GEN1,

MINUS BACK PANEL

H57H-AD Motherboard Specifications.


CPU

Support Socket: Intel LGA 1156

* Pentium (Dual Core)

* Core i7, i5 (Lynnfield ), Core i5, i3 (Clarkdale)

Chipset
Intel H57
Video
Intel HD Graphics
Memory
4 x 240-pin DDR3 DIMM slots Supports Dual Channel DDR3 1333/ 1066MHz non-ECC, un-buffered memory (Max 16GB)
Expansion Slots
1 x PCI Express x1
1 x PCI Express x16 (2.0)
Storage
3 x SATA II 3Gb/s connectors
Audio
Realtek – High Definition
Ethernet
Intel – (Gigabit)
Rear Panel
1 x PS/2 for keyboard (purple color)
1 x PS/2 for mouse (green color)
1 x RJ45 LAN Port
6 x USB 2.0 Ports
1 x Audio I/O
1 x VGA Port
1 x DVI Port
1 x E-SATA
Internal
1 x 4-pin CPU Fan connector
1 x 3-pin SYS Fan connector
1 x 24-pin ATX Power connector
1 x 4-pin ATX 12V Power connector
1 x Front Audio header
1 x Front Panel header
1 x Clear CMOS jumper
1 x Battery socket (3V)
3 x USB headers
BIOS

Form Factor
Micro-ATX

Compatible Product LineUniversal
Compatible BrandUniversal
KONDISI: SECOND/WORKING
STOCK IN; READY STOCK
WARRANTY : 14DAY
Stock : Ready in Jakarta
