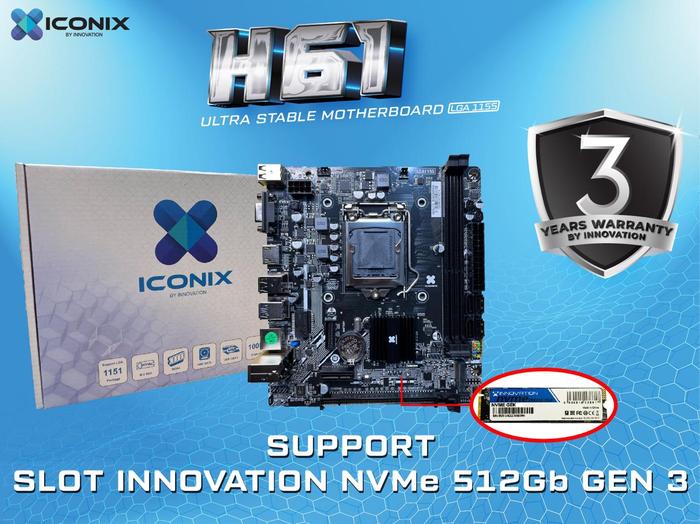

MOTHERBOARD ICONIX-H61 SLOT NVMe MOBO H61 NVME ICONIX H61 N-VME

MOTHERBOARD ICONIX-H61 SLOT NVMe MOBO H61 NVME ICONIX H61 N-VME

Note :
- Cek stock terlebih dahulu sebelum order (Ketersediaan Terbatas)
- Gambar hanya ilustrasi, versi produk dapat berbeda tergantung kebijakan vendor, namun tidak mengurangi spesifikasi dan fungsi produk
- Request warna, ukuran dll. WAJIB cantumkan pada keterangan saat order. Jika tidak maka unit kami kirim secara random
- Berat tercantum BELUM termasuk Pack kayu dan Asuransi, Tanpa atc Packing kayu & Asuransi maka segala resiko pengiriman ditanggung PEMBELI
- Simpan dus dan invoice pembelian untuk garansi
- Mohon sertakan video unboxing apabila ingin mengajukan komplain pada kerusakan paket (kesalahan produk, cacat fisik, dll).


Processor
Support Intel Socket 1155 for 2nd/3rd Generation Corei7/ Core i5/Core i3/Pentium/Celeron Processors
Supports Intel Turbo Boost Technology 2.0

Chipset
Intel H61

Memory support
2 * DDR3 1066/1333/1600MHz DIMM

Graphic
Integrated Graphics Processor- Intel HD Graphics support
Multi-VGA output support : HD / VGA ports

Slots
1 x PCIe x16 slot
1 x PCIe x1 slot

Storage
1 x M.2 Socket, Supports 2280 SSD
4 x SATA 3Gb/s Ports

LAN
Realtek Chip, 1 x 100M（Optional 1000M）

Audio
Realtek Chip, ALC 6-channel audio

USB
10 * USB 2.0 port (6 at back panel, black, 4 at mid-board)

Back Panel I/O
1 x VGA Port
1 x HDMI Port
1 x LAN (RJ45) Port
6 x USB 2.0 Ports
3 x flexible audio jacks

Internal I/O
1 x USB 19pin connector， supports 2*USB 2.0 ports
1 x USB 2.0 connector， supports 2*USB 2.0 ports
4 x SATA 3Gb/s Ports
1 x 4 -pin CPU_FAN/SYS_FAN connectors
1 x 24-pin ATX power connector
1 x 4-pin 12V ATX Power connectors
1 x F_Audio connector
1 x Internal Speaker connector
1 x F_Panel connector
1 x DEBUG connector

Dimension 213 x 170mm
