Pinus longaeva 5G/H 5grams adjustable Quartz tube type ozone generator Kit ozone tube transformer for ozone generator air water
Rp1.297.000
- Kondisi: Baru
- Waktu Preorder: 30 Hari
- Min. Pemesanan: 1 Buah
- Etalase: Semua Etalase
Pinus longaeva 5G/H 5grams adjustable Quartz tube type ozone generator Kit ozone tube transformer for ozone generator air water
Sebelum order mohon dibaca rincian pd deskripsi :)
- Barang dikirim langsung dr Luar Negeri
- Estimasi pengiriman 15 Harian Sampai Alamat
- harga yang dipajang sudah full payment tapi sewaktu- waktu harga bisa saja berubah berdasarkan ketentuan cukai !!
- Packing Safety, Seller Amanah :)
- Jaminan uang kembali jika barang diterima tidak sesuai !!!

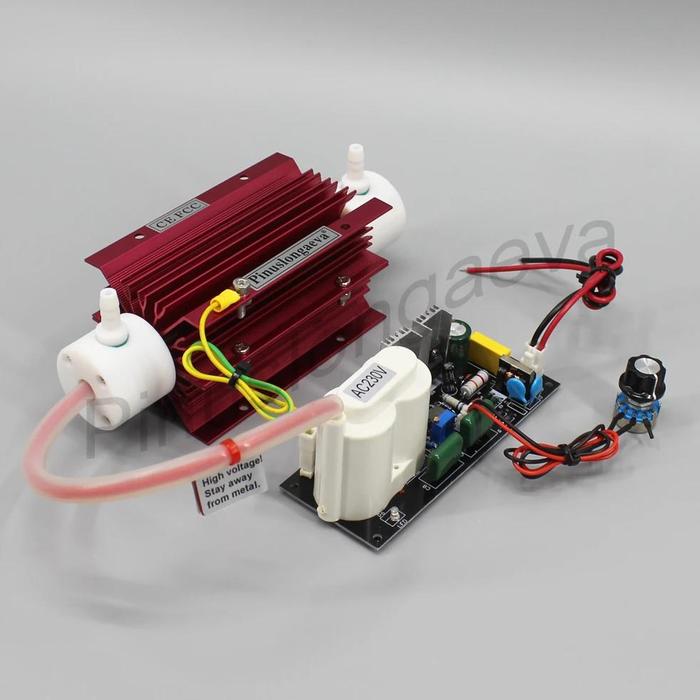

Product picture: (When the product works, there is no electricity on the red radiator, which is very safe)
There is no need to distinguish between inlet and outlet.
Inlet: We recommend that you use 4*7mm silicone tube or 5*8mm PU tube.
Outlet: We recommend that you use 6*8mm Teflon tube.
If you need to change the connector, please contact us.
Product parameters:
Product introduction:
Product name: Quartz tube type ozone generator Kit
Cooling way: Air cooling
Gas source: Air source, oxygen source
Gas pressure: <0.2Mpa (200kpa)
Environment: <40 degrees Celsius, <85%RH
Temperature rise: <8 degrees Celsius
Heat dissipation effect: Increase 1.6 times
Ozone concentration: Increase 10%-15%
Inner electrode: 316L stainless steel tube
Product application: Air purification and water sterilization
Service life / Warranty: More than 20000 hours / 2 years
Customized: Can be customized
Low temperature rise, high efficiency, moisture-proof, low-voltage protection, over-voltage protection, over-current protection, over-heat protection, open-circuit protection, short-circuit protection, automatically stabilize the output power.
Installation requirements:
We recommend that you install the ozone tube on the insulating board. If you want to install it on a metal shell, we recommend that you connect a ground wire to your metal shell.
You can use long screws to install the ozone PSU (ozone power supply, circuit board) away from the ozone tube (metal shell or other electrical appliances) more than 4cm. (Front, back, left, right, up, down)
When you get our product, you will get installation and operation instructions, which is simple.
Specifications:
Hign-concerned Chemical: None
Interface Diameter: None
Water Quality Requirements: Municipal Water/Well Water
5 Stage Filtration: No
Time to market: 2009
Installation: Vertical
Function: Indirect Drink
Power (W): 45W
Model Number: PL-5QRAO
Material: STAINLESS STEEL
Purifying Position: Central Purification
Certification: CE,EMC
Type: Ozone
Sebelum order mohon dibaca rincian pd deskripsi :)
- Barang dikirim langsung dr Luar Negeri
- Estimasi pengiriman 15 Harian Sampai Alamat
- harga yang dipajang sudah full payment tapi sewaktu- waktu harga bisa saja berubah berdasarkan ketentuan cukai !!
- Packing Safety, Seller Amanah :)
- Jaminan uang kembali jika barang diterima tidak sesuai !!!
Product picture: (When the product works, there is no electricity on the red radiator, which is very safe)
There is no need to distinguish between inlet and outlet.
Inlet: We recommend that you use 4*7mm silicone tube or 5*8mm PU tube.
Outlet: We recommend that you use 6*8mm Teflon tube.
If you need to change the connector, please contact us.
Product parameters:
Product introduction:
Product name: Quartz tube type ozone generator Kit
Cooling way: Air cooling
Gas source: Air source, oxygen source
Gas pressure: <0.2Mpa (200kpa)
Environment: <40 degrees Celsius, <85%RH
Temperature rise: <8 degrees Celsius
Heat dissipation effect: Increase 1.6 times
Ozone concentration: Increase 10%-15%
Inner electrode: 316L stainless steel tube
Product application: Air purification and water sterilization
Service life / Warranty: More than 20000 hours / 2 years
Customized: Can be customized
Low temperature rise, high efficiency, moisture-proof, low-voltage protection, over-voltage protection, over-current protection, over-heat protection, open-circuit protection, short-circuit protection, automatically stabilize the output power.
Installation requirements:
We recommend that you install the ozone tube on the insulating board. If you want to install it on a metal shell, we recommend that you connect a ground wire to your metal shell.
You can use long screws to install the ozone PSU (ozone power supply, circuit board) away from the ozone tube (metal shell or other electrical appliances) more than 4cm. (Front, back, left, right, up, down)
When you get our product, you will get installation and operation instructions, which is simple.
Specifications:
Hign-concerned Chemical: None
Interface Diameter: None
Water Quality Requirements: Municipal Water/Well Water
5 Stage Filtration: No
Time to market: 2009
Installation: Vertical
Function: Indirect Drink
Power (W): 45W
Model Number: PL-5QRAO
Material: STAINLESS STEEL
Purifying Position: Central Purification
Certification: CE,EMC
Type: Ozone
