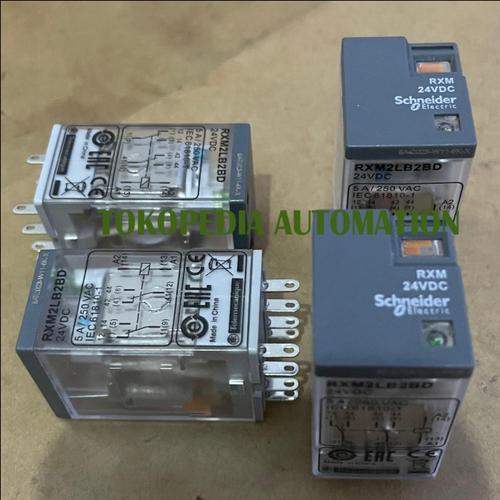

RXM2LB2BD 24VDC RELAY SCHNEIDER RXM

SILAHKAN HUBUNGI ADMIN UNTUK KETERSEDIAAN STOK, TERIMAKASIHSchneider Electric Miniature plug-in relay - RXM2LB2BD_MINIATURE RELAY OPTIMUM 2CO 24VDC ANDLINK SOCKET https://www.tokopedia.com/sspm/rxze1m2c-socket-relay-rxm2-rxze-1m2c-pn10?extParam=whid%3D14157854%26src%3Dchat#Spesifikasi- range of product : Harmony Electromechanical Relays- series name : Miniature- product or component type : Plug-in relay- device short name : RXM- utilisation coefficient : 20 %- contacts type and composition : 2 C/O- [Uc] control circuit voltage : 24 V DC- [Ithe] conventional enclosed thermal current : 5 A at -40…55 °C- status LED : With- Control type : Without push-button- [Ui] rated insulation voltage : 250 V conforming to IEC- [Uimp] rated impulse withstand voltage : 3.6 kV during 1.2/50 µs conforming to IEC 61810-7- contacts material : Silver alloy (Ag/Ni)- [Ie] rated operational current :*5 A (AC-1/DC-1) NO conforming to IEC*2.5 A (AC-1/DC-1) NC conforming to IEC*1 A at 28 V (DC-13) NO- maximum switching voltage :*250 V AC*250 V DC- maximum switching capacity :*1250 VA AC*140 W DC- minimum switching capacity : 170 mW- average coil consumption :0.9 W, DC- operating rate :<= 1200 cycles/hour under load<= 18000 cycles/hour no-load- mechanical durability : 10000000 cycles- electrical durability :*100000 cycles for resistive load*50000 cycles, 1 A at 28 V, DC-13 NO- drop-out voltage threshold : >= 0.1 Uc DC- operating time :*20 ms between coil de-energisation and making of the Off-delay contact*20 ms between coil energisation and making of the On-delay contact- average resistance : 630 Ohm network: DC at 20 °C +/- 10 %- rated operational voltage limits : 19.2...26.4 V AC- protection category : RT I- test levels : Level A group mounting- operating position : Any position- CAD overall width : 21mm- CAD overall height : 27 mm- CAD overall depth : 46 mm- Net weight : 0.032 kg- safety reliability data : B10d = 100000
