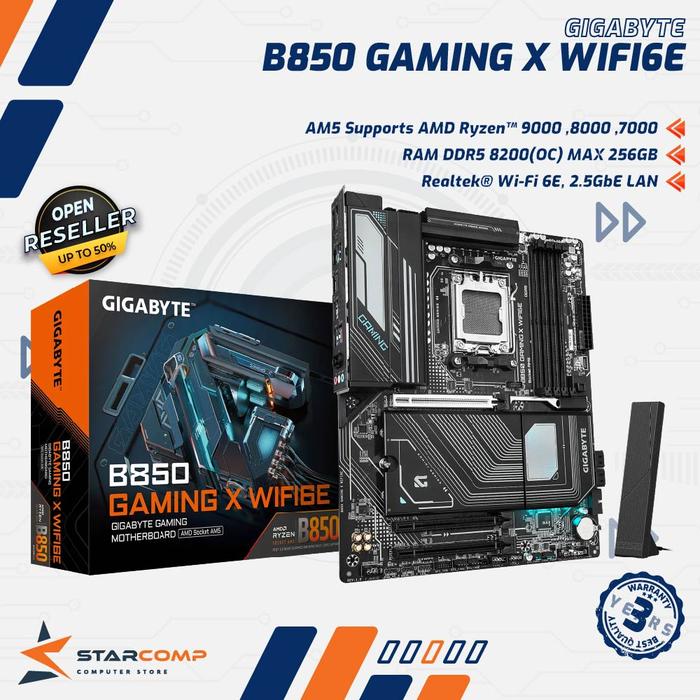

Gigabyte B850 GAMING X WIFI6E AM5 AMD B850 DDR5 USB3.2 Type C WiFi 6E

GIGABYTE B850 GAMING X WIFI6E AM5 AMD B850 DDR5 USB3.2 Type C WiFi 6E Motherboard

CPU : AMD Socket AM5, support for : AMD Ryzen 9000 8000 7000 Series Processors
Chipset : AMD B850
Memory :
Support for DDR5 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5800(O.C) / 5600(O.C) / 5200 / 4800 / 4400 MT/s memory modules.
4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules

Onboard Graphics
Integrated Graphics Processor with AMD Radeon Graphics support:
- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
- 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz

Audio
Realtek Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel

LAN
Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module
Realtek Wi-Fi 6E RTL8852CE
- WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
- BLUETOOTH 5.3
- Support for 11ax 160MHz wireless standard

Expansion Slots
1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x16 mode
AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode

AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode

USB
CPU:
- 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2 support
- 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
- 1 x USB 3.2 Gen 1 port on the back panel
CPU+USB 2.0 Hub:
- 3 x USB 2.0/1.1 ports on the back panel
Chipset:
- 1 x USB Type-C port with USB 3.2 Gen 2x2 support, available through the internal USB header
- 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
- 4 x USB 2.0/1.1 ports available through the internal USB headers

Back Panel Connectors
1 x DisplayPort*
1 x HDMI port*
1 x Q-Flash Plus button
1 x PS/2 keyboard/mouse port
1 x USB Type-C port, with USB 3.2 Gen 2 support
1 x USB 3.2 Gen 2 Type-A port (red)
3 x USB 3.2 Gen 1 ports
3 x USB 2.0/1.1 ports
1 x RJ-45 port
2 x antenna connectors (2T2R)
3 x audio jacks

* Actual support may vary by CPU.
I/O Controller
iTE I/O Controller Chip

BIOS
1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Bundled Software :
Norton Internet Security (OEM version)
LAN bandwidth management software

Operating System : Support for Windows 10/11 64-bit

Form Factor : ATX (30.5cm x 24.4cm)
