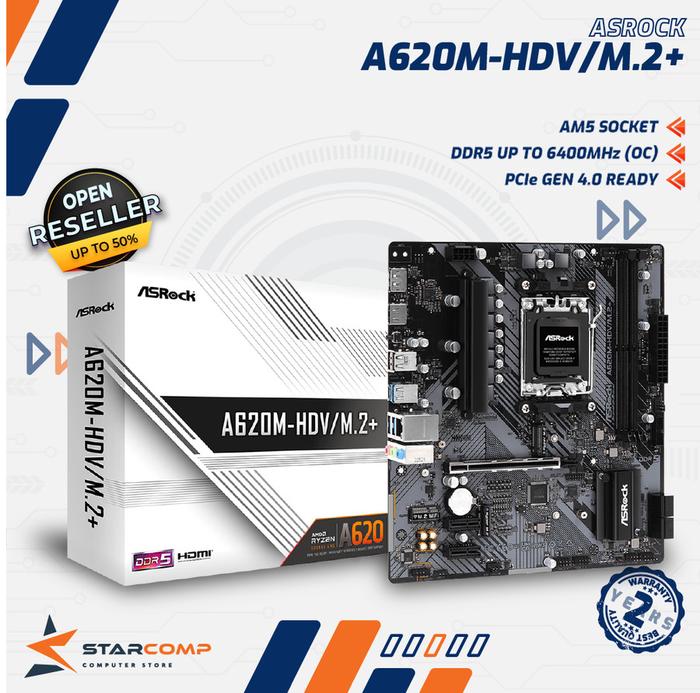

Motherboard Asrock A620M-HDV/M.2+ (AM5, AMD, DDDR5, A620, USB 3.2, SATA 3) Mainboard Mobo A620M

ASRock A620M-HDV/M.2+ AM5, AMD A620, DDR5, USB3.2, SATA3


Specifications
Supports AMD Socket AM5 Ryzen 9000, 8000 and 7000 Series Processors
6+1+1 Power Phase, Dr.MOS
2 x DDR5 DIMMs
Supports Dual Channel, up to 7200+ (OC)
1 PCIe 4.0 x16, 2 PCIe 3.0 x1, 1 M.2 Key E for WiFi
Integrated AMD RDNA 2 Graphics*
Graphics Output Options: HDMI, DisplayPort
Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio
4 SATA3, 2 Hyper M.2 (PCIe Gen4x4)
6 USB 3.2 Gen1 (3 Rear, 1 Rear Type-C, 2 Front)
Realtek Gigabit LAN
Supports ASRock Auto Driver Installer, BIOS Flashback




CPU
- Supports AMD Socket AM5 Ryzen 9000, 8000 and 7000 Series Processors**


Chipset
- AMD A620


Memory
- Dual Channel DDR5 Memory Technology
- 2 x DDR5 DIMM Slots
- Supports DDR5 ECC/non-ECC, un-buffered memory up to 7200+(OC)*
- Max. capacity of system memory: 128GB
- Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules


Graphics
Integrated AMD RDNA graphics (Actual support may vary by CPU)
- 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
- 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz


LAN
- Gigabit LAN 10/100/1000 Mb/s
- Realtek RTL8111H


Slots
CPU:
- 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode*
Chipset:
- 2 x PCIe 3.0 x1 Slots (PCIE2 and PCIE3)*
- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module


Storage
CPU:
- 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
- 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
Chipset:
- 4 x SATA3 6.0 Gb/s Connectors
- 1 x User Manual
- 1 x I/O Shield
- 2 x SATA Data Cables
- 3 x Screws for M.2 Sockets
