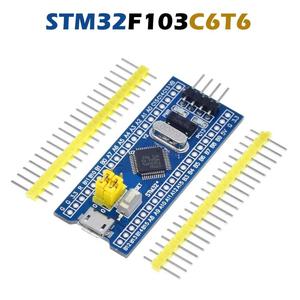

[SAT] STM32F103C8T6 ARM STM32 DEVELOPMENT BOARD MODULE COMPATIBLE ARDUINO - STM32F103C6T6, Pin BelumSolder

HALO PELANGGAN SETIA

STM32 Minimum System Development Board Module Support arduino ide

Terdapat 3 Varian produk, silahkan pilih :
-STM32F103C8T6 (32BIT 64KB FLASH)
-STM32F103C6T6 (32BIT 32KB FLASH)
-CH32F103C8T6 (32BIT 64KB FLASH+USB HOST)

*CH32F103C8T6 adalah chip baru buatan china untuk cloning chip STM32F103C8T6
*CH32F103C8T6 memiliki spek mirip dengan STM32 aslinya dan memiliki fitur tambahan
bisa USB Host Shiled dan bisa berjalan di tegangan 3.3V dan 5V serta level GPIO nya juga bisa
3,3V dan 5V mengikuti tegangan supply.

Anda juga bisa memilih pinheader yang sudah tersolder atau belum tersolder


Number of pins: 48;
Kernel: Cortex-M3;
Operating frequency: 72MHz;
Storage resources: 64K/32K Byte Flash, 20KByte SRAM;
Interface Resources: 2x SPI, 3x USART, 2x I2C, 1x CAN, 37x I / O ports,
Analog-to-digital conversion: 2x ADC (12-bit / 16-channel)
Timers: 3 general timers and 1 advanced timer
Debug Download: Support JTAG / SWD debug interface to download, support for IAP.
2, RT9193: 3.3V regulator chip, the maximum output of 300mA.
Interface description:

1, SWD interface: support for simulation, download and debug.
2, Mirco USB interface: power supply and USB communication, does not support the download.
3, USART1 interface: USART1 can be used to download the program, or use the USART1 for communication.
4, MCU pin interface: leads all I / O port pins, easy to connect with peripherals.
5, 5V and 3.3V power input and output interface: commonly used in external power supply, or with other modules for common ground treatment
Other Device Description:
