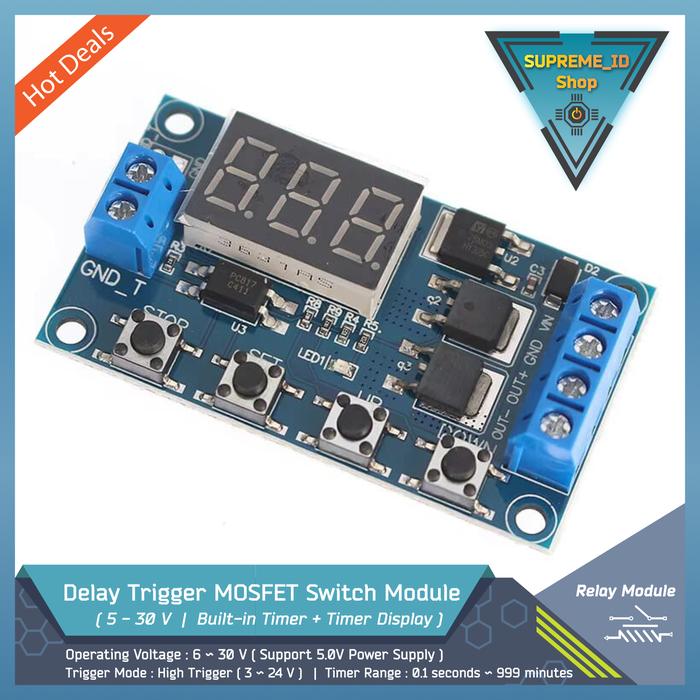

Digital Delay Trigger Relay Switch Module + Timer + Display | 5 - 30V | Power Supply Timer - MOSFET ver
Rp23.900
Pilih ukuran: MOSFET ver
Stok varian ini habis. Simpan di Wishlist untuk diingatkan ketika barang kembali tersedia.
Product Specification:
1: Operating voltage: 6--30V support micro USB 5.0V power supply
2: The trigger source: high trigger (3.0V-24V) signal with no common ground system to improve anti-jamming capability of the system (also self-shorting common ground)
3: Output capability: You can control the DC or AC within 30v 5A within 220v5A
4: Quiescent Current: 20mA Operating Current: 50mA
5: Timing range: 0.1 seconds -999 minutes continuously adjustable;
6: Availability: more than 10 million times;
Working temperature: -40-85 Celsius;
size: 6.2 * 3.8 * 1.7cm
7: with optocoupler isolation, enhanced anti-jamming capability, industrial grade circuit boards, set the parameters after power failure memory forever.
Special Note: The relay outputs are passive contact, uncharged output to control a line-off role.
1: Operating voltage: 6--30V support micro USB 5.0V power supply
2: The trigger source: high trigger (3.0V-24V) signal with no common ground system to improve anti-jamming capability of the system (also self-shorting common ground)
3: Output capability: You can control the DC or AC within 30v 5A within 220v5A
4: Quiescent Current: 20mA Operating Current: 50mA
5: Timing range: 0.1 seconds -999 minutes continuously adjustable;
6: Availability: more than 10 million times;
Working temperature: -40-85 Celsius;
size: 6.2 * 3.8 * 1.7cm
7: with optocoupler isolation, enhanced anti-jamming capability, industrial grade circuit boards, set the parameters after power failure memory forever.
Special Note: The relay outputs are passive contact, uncharged output to control a line-off role.
