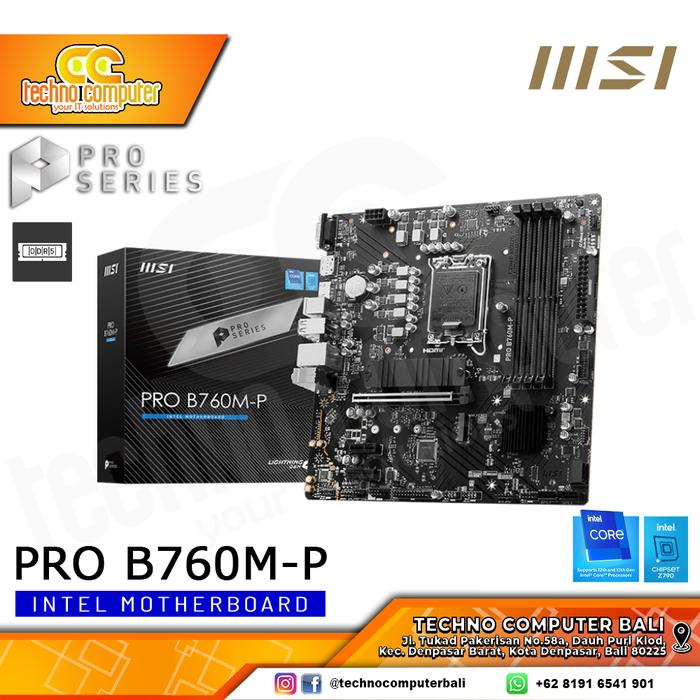

MOTHERBOARD MSI PRO B760M-P - mATX LGA1700 B760 DDR5

𝗦𝗽𝗲𝗰𝗶𝗳𝗶𝗰𝗮𝘁𝗶𝗼𝗻𝘀 :

CHIPSET
- INTEL B760

CPU SUPPORT
- Supports 12th/13th Gen Intel Core Processors, Pentium Gold and Celeron Processors
LGA 1700

MEMORY
- 4x DDR5, Maximum Memory Capacity 192GB
- Memory Support DDR5 6800+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
- Supports Intel XMP 3.0 OC
- Supports Dual-Controller Dual-Channel mode
- Supports non-ECC, un-buffered memory

ONBOARD GRAPHICS
- 1x HDMI
- 1x DisplayPort
- 1x VGA
- Support HDMI 1.4, maximum resolution of 4K 30Hz*
- Support DP 1.4, maximum resolution of 4K 60Hz*
- Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz

EXPANSION SLOT
- 1x PCI-E x16 slot
- 2x PCI-E x1 slot
- PCI_E1 PCIe 4.0 supports up to x16 (From CPU)
- PCI_E2 PCIe 4.0 supports up to x1 (From Chipset)
- PCI_E3 PCIe 4.0 supports up to x1 (From Chipset)

STORAGE
- 2x M.2 slot
- M.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
- M.2_2 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
- 4x SATA 6G port

LAN
- Realtek RTL8111H Gigabit LAN

AUDIO
- Realtek ALC897 Codec
- 7.1-Channel High Definition Audio

OPERATING SYSTEM
- Support for Windows 11 64-bit, Windows 10 64-bit

PCB DIMENSION
- mATX
- 243.84mmx243.84mm
