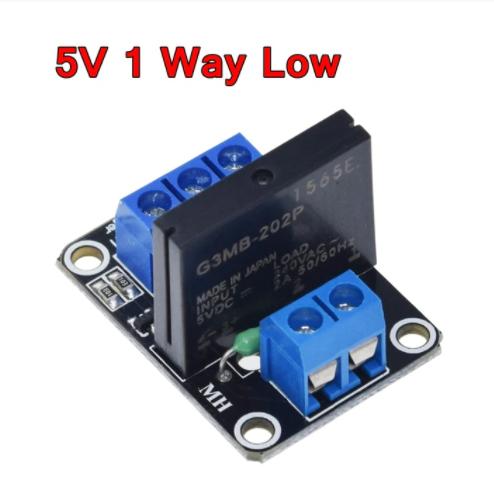

Relay SSR Solid State 5v Level - 1 channel, HIGH Triger

Product description:
1. Omron 5V solid state relay 240V 2A, the output with a resistive fuse 240V 2A.
2. size:
1 way: 25 * 34 * 25 (long * wide * high)
2 way: 55 * 33 * 25 (long * wide * high)
4 way: 57 * 55 * 25 (long * wide * high)
8 Way: 106 * 56 * 25 (L * W * H)
3. input power: 5V DC (160MA)
4. the input control signal voltage:
High level module: (0-2.5V state low level relay ON)
(3.3-5V state high level relay OFF)
Low level module: (0-2.5V state low level relay OFF)
(3.3-5V state high level relay ON)
5. there are 2.54CM pin and blue KF301 terminal control line is more convenient.
Input section:

DC +: Connect the power supply positive (according to the relay voltage)
DC-: Connect the power supply negative
CH1: 1 relay module signal trigger terminal (low level trigger active)
CH2: 2 relay module signal trigger terminal (low level trigger active)
CH3: 2 relay module signal trigger terminal (low level trigger active)
CH4: 2 relay module signal trigger terminal (low level trigger active)
High and low meaning:
High-level trigger refers to the signal trigger side (IN) and the negative power supply has a positive voltage between the positive and the power supply is usually connected to the trigger side of a trigger, when the trigger side voltage or trigger to reach the trigger Voltage, the relay is pull.
Low-level trigger refers to the voltage between the signal trigger terminal and the negative terminal of the power supply is OV, or the voltage of the trigger terminal is lower than the voltage of the positive terminal of the power supply. When the voltage is low enough to trigger, the relay is pulled in, The negative side of the power supply is connected to the trigger side of a trigger, so that the relay is pull.

Electrical parameters:
Voltage Version Quiescent Current Operating Current Trigger Voltage Trigger Current
1 channel 5V 0mA 12.5mA 0-2.5V 2mA
2 5V 0mA 22.5mA 0-2.5V 2mA
4 5V 0mA 48mA 0-2.5V 2mA
4 5V 0mA 102mA 0-2.5V 2mA
