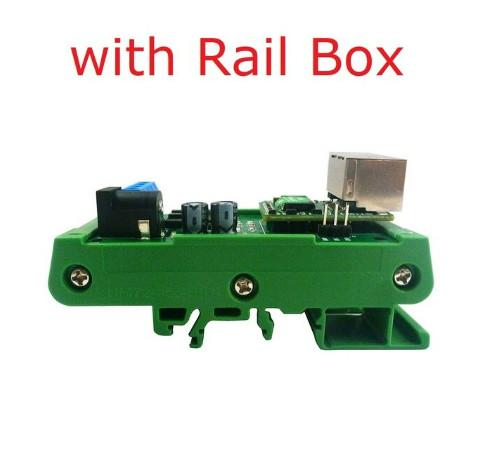

RJ45 to RS485 Bus Converter for Modbus RTU Master Slave TCP Client Ser - with Rail Box
Rp345.000
Pilih ukuran perkakas pertukangan: with Rail Box
Ethernet Network IP RJ45 to RS485 Bus Converter for Modbus RTU Master Slave TCP Client Server MQTT PLC
Working voltage : DC 12V (DC 6.5-25V)
Working current : 20-25mA
Work Mode: UDP,TCP Client,TCP Server,Modbus Slave,Modbus Master,MQTT
TVS anti-surge protection
The default baud rate is 9600BPS. The baud rate can be selected by WEB settings 1200 2400 4800 9600 19200 38400 57600 115200BPS
The parity can be none parity, even parity and odd parity
Size: 72 * 37 * 24mm(Only PCB Board);82 * 41*40mm(with Din Rail Box)
Weight: 24g(Only PCB Board);58g(with Din Rail Box)
For more information, please contact me
Application
Ethernet to RS485
Support all RS485 devices of eletechsup, such as:
10IOA08/R4DCB08/R4D3B16/N4D3E16/N4AIA04
Smart Home,Home Automation ,Wiser Home;
Security Monitoring
Identification system;
IP Camera
LED Lamp Drivers
Automatic curtain control
Working voltage : DC 12V (DC 6.5-25V)
Working current : 20-25mA
Work Mode: UDP,TCP Client,TCP Server,Modbus Slave,Modbus Master,MQTT
TVS anti-surge protection
The default baud rate is 9600BPS. The baud rate can be selected by WEB settings 1200 2400 4800 9600 19200 38400 57600 115200BPS
The parity can be none parity, even parity and odd parity
Size: 72 * 37 * 24mm(Only PCB Board);82 * 41*40mm(with Din Rail Box)
Weight: 24g(Only PCB Board);58g(with Din Rail Box)
For more information, please contact me
Application
Ethernet to RS485
Support all RS485 devices of eletechsup, such as:
10IOA08/R4DCB08/R4D3B16/N4D3E16/N4AIA04
Smart Home,Home Automation ,Wiser Home;
Security Monitoring
Identification system;
IP Camera
LED Lamp Drivers
Automatic curtain control
