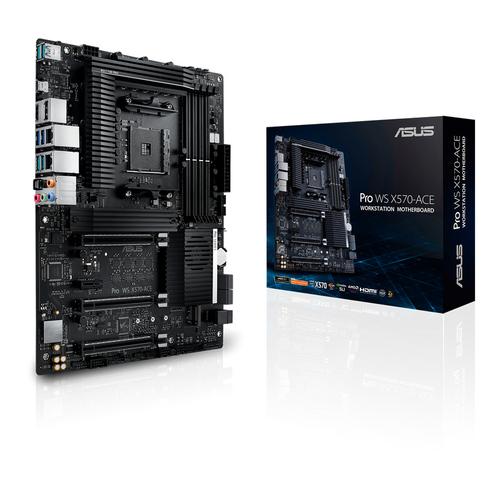

ASUS PRO WS X570-ACE - Workstation Mainboard X570 Pro - AM4

Garansi Resmi 3 Tahun

Silakan Komfirmasi Persediaan Stok Barang Sebelum Melakukan pembelian
Trimaksih...

AMD AM4 X570 ATX Workstation motherboard with 3 PCIe 4.0 x16, 14 with IR3555 power stages, DDR4 ECC memory support, Intel Gigabit LAN, dual M.2, U.2, and ASUS Control Center Express


Chipset
AMD X570
Memory
4 x DIMM, Max. 128GB, DDR4 5100(O.C)/4800(O.C.)/4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3200/3000/2933/2800/2666/2400/2133 MHz Un-buffered Memory *
Dual Channel Memory Architecture
ECC Memory (ECC mode) support varies by CPU.

Graphic
Integrated Graphics in AMD Ryzen 4000 G-Series/ 3000 G-Series/ 2000 G-Series Desktop Processors
Multi-VGA output support : HDMI/DisplayPort ports
- Supports HDMI 2.0b with maximum resolution of 4096 x 2160 @ 60 Hz
- Supports DisplayPort 1.2 with max. resolution 4096 x 2160 @ 60 Hz
Multi-GPU Support
AMD Ryzen 5000 Series/ 4000 G-Series/ 3000 Series/ 2000 Series Desktop Processors>
Supports NVIDIA 2-Way SLI Technology
Supports AMD 3-Way CrossFireX Technology
Expansion Slots
AMD Ryzen 5000 Series/ 3000 Series Desktop Processors
2 x PCIe 4.0 x16 (x16 or dual x8)
AMD RyzenTM 4000 G-Series / 2000 Series Processors
2 x PCIe 3.0 x16 (x16 or dual x8)
AMD RyzenTM 3000 G-Series / 2000 G-Series Processors
1 x PCIe 3.0 x16 (x8 mode)
AMD X570 chipset
1 x PCIe 4.0 x16 (x8 mode)
1 x PCIe 4.0 x1
Storage
AMD Ryzen 5000 Series/ 3000 Series Desktop Processors :
1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support
AMD RyzenTM 4000 G-Series / 3000 G-Series / 2000 Series / 2000 G-Series Processors :
1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes) storage devices support
AMD X570 chipset :
1 x M.2_2 socket 3, with M Key, Type 2242/2260/2280(PCIE 4.0 x2) storage devices support
1 x U.2 connector, support PCIe 3.0 x4 NVM Express storage
4 x SATA 6Gb/s port(s
