Matek System M8Q 5883 SAM M8Q GPS Ublox & QMC5883L Compass Module

Terjual 75
rating 5 (25 ulasan)
Diskusi (5)
Rp490.000
  • Kondisi: Baru
  • Berat: 50 Gram
  • Kategori: Part RC
  • Etalase: Flight Controller, PDB, BEC, Other Boards
Specification:
Brand name: Matek
Item name: GPS & compass module M8Q-5883
Dimensions: L20 x W20 x H10 mm
Weight: 7 gram
Input voltage range: 4~6V
Uart (Tx,Rx) interface for GPS SAM-M8Q
I2C (DA,CL) interface for Compass QMC5883L
Battery for HOT module start
Power LED(Red) & Time pulse LED(Blue)
Supported by INAV/Betaflight/Ardupilot, ect.

Features:
-72-channel M8 engine GPS L1C/A, SBAS L1C/A, QZSS L1C/A, QZSS L1 SAIF, GLONASS L1OF, Galileo E1B/C
-On-board Ultra low noise 3.3V voltage regulator and RF filter for noise blocking
-Features an additional front-end LNA for optimized performance and a front-end SAW filter for increased jamming immunity
-Build-in embedded GNSS patch antenna, low power consumption
-The 15 x 15 mm patch antenna provides the best compromise between the performance of a Right Hand Circular Polarized (RHCP) antenna and a small size
to be integrated in any design.
-Magnetic sensor QMC5883L integrated
-Max navigation update rate
Single GNSS up to 18 Hz
2 Concurrent GNSS(GPS & GLONASS) up to 10 Hz
-Horizontal position accuracy(GPS & GLONASS) 2.5 m CEP
-Velocity accuracy 0.05m/s
-Cold start 26 s
Aided cold starts: 2 s
Hot start 1 s
-Sensitivity
Tracking & Navigation: ''"165 dBm
Reacquisition: ''"158 dBm
Cold start: ''"146 dBm
Hot start: ''"155 dBm

Tips:
-GPS, GLONASS, SBAS, QZSS are enabled by default
-Blue PPS LED blinking(1Hz) means 3D fixed
-update rate 1Hz & baudrate 9600 default
-Baud 9600~115200 supported by INAV/BF/Ardupilot
-Compass Alignment(Arrow forward):
INAV/BF: CW 270 Flip
Ardupilot/Mission Planner: Rotation None
-BF doesn'''t support GPS position hold and RTH, GPS Rescue mode is supported by BF3.5 or last.
-No need compass for Fixed wings with INAV firmware
-The scratches on ceramic antenna are the result of tuning the antenna by ublox.

u-center Windows : https://www.u-blox.com/en/product/u-center-windows

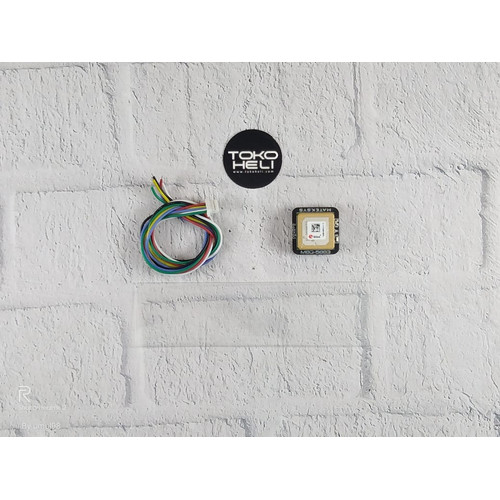

Package included:
1x M8Q-5883 module
1x SH1.0-6P 20cm silicon wire
1x Transparent PVC Heat-shrink tube
