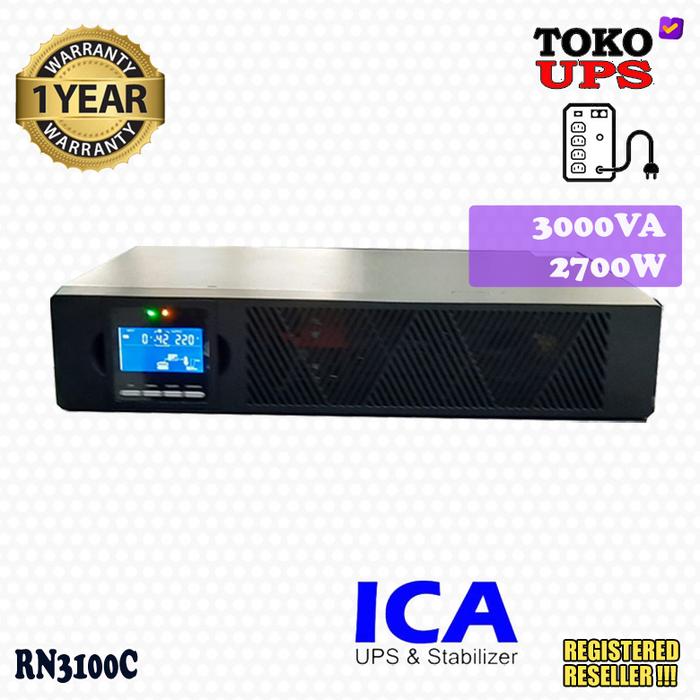

UPS ICA RN 3100C RN3100C 3000VA 2700W Online Sinewave Rackmount - Unit

- Pengiriman Luar Jawa Harus Pakai "CARGO"
- Garansi Resmi ICA 1 Tahun Unit & Baterai

UPS ICA RN 3100C RN3100C 3000VA 2700W Online Sinewave Rackmount
Capacity : 3000 VA / 2700 W
INPUT
Rated voltage : 200 / 208 / 220 / 230 / 240Vac
Voltage range : 110 ~ 300Vac (depend on load percentage)
Frequency range : 40 ~ 70Hz (auto detect)
Power factor : ≥0.99
Bypass voltage range : Bypass high voltage point Setting in LCD from 230Vac to 264Vac (Default: 264Vac) Bypass low voltage point Setting in LCD from 170Vac to 220Vac (Default: 170Vac)
Generator input : Support
BATTERY
Battery voltage : 72Vdc
Typical recharge time : 4 hours (to 90% of full capacity)
Backup time : Estimated remaining time displayed on the LCD
Charging current (max.) : 1A
Output voltage : 200 / 208 / 220 / 230 / 240Vac
Power factor : 0.9
Voltage regulation : ±1%
Frequency line mode : 45 ~ 55Hz (for 50Hz) or 55 ~ 65Hz (for 60Hz)
Frequency bat. mode : 50 / 60 (±0.01%)Hz
Crest factor : 3 : 1
Harmonic distortion (THDv) : ≤3% with linear load; ≤6% with non-linear load
Waveform : Pure sinewave
Efficiency (AC mode full load) : >90%
Transfer time : Utility to Battery: 0ms; Utility to Bypass: Overload (Line Mode) : Load ≤110%: last 10min; ≤130%: last 1min; ≤150%: last 5S; >150% turn to bypass mode (1 ~ 3kvA) Load ≤110%: last 60min; ≤125%: last 10min; ≤150%: last 1S; >150% turn to bypass mode (6 ~ 10kvA)
Short circuit : Hold whole system
Overheat : Line mode: Switch to Bypass; Backup Mode: Shutdown UPS immediately
Battery low : Alarm and switch off
EPO (optional) : Shutdown UPS immediately
Audible & visual alarm : Line failure; Battery Low, Overload, System Fault
Coomunication interface : USB (or RS232), SNMP card / relay card (optional)
Dimension W x H x D (mm) : 440 x 86.5 x 600 (2U)
