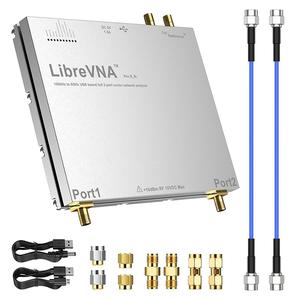

3-In-1 Multifunctional Network Spectrum Analyzer Signal Generator Libre VNA 2.0 Frequency Analyzer

3-In-1 Multifunctional Network Spectrum Analyzer Signal Generator Libre VNA 2.0 Frequency Analyzer * Produk ini tidak mendukung pembayaran sistem COD * Semua Produk di toko kami READY dengan pengiriman 7-15 hari dari Singapore * Mohon dokumentasikan saat membuka kemasan seperti video UNBOXING * kami bisa membantu menyediakan barang impor yang anda butuhkan * Terima kasih dan Jangan Lupa Follow Toko kami ya, Happy Shopping Model Number : Librevna 2.0 100Khz6Ghz Display Size : 3.0 - 4.9 Inches DIY Supplies : ELECTRICAL Brand Name : MAYILON Certification : CE Origin : Mainland China 3-In-1 Multifunctional Network Spectrum Analyzer Signal Generator Libre VNA 2.0 Frequency Analyzer Tester 100Khz-6Ghz 6Layer PCB The LibreVNA Antenna Analyzer provides a 100kHz to 6GHz ultra-wide frequency range(previous vna analyzers are about 10KHz-1.5/3GHz),New 6-layer PCB design optimizes the S12 port isolation and high-frequency port matching. The S12 can achieve over 90dB of port isolation below 3GHz, allowing measurements above 6GHz using harmonics. In actual tests up to 9GHz, both S11 and S22 have more than 10dB port directivity, and S12 S21 have more than 40dB dynamics. Using 3 ADCs to sample data simultaneously and using FPGAs for signal processing, it is capable of scanning over 10,000 points of full dual-port measurements in less than 1 second.This vector network analyzer will be a nice addition device to the workbench, which is a very fully functional analyzer for electronics engineer, amateur radio operators or radio diy enthusiast. In Vector Network Analyzer operating mode, the LibreVNA can measure the complete S11, S21, S12 and S21 parameters. A source signal is generated and alternately applied to the RF ports. The incoming signal at both RF ports is measured, resulting in the four S-parameters S11 and S21 (when the source signal is routed to port 1) as well as S12 and S22 (when TS1005005687099814
