Dual Digital Fiber Sensor Amplifier NPN Expansion Keyence FS V22
Rp606.000
- Kondisi: Bekas
- Min. Pemesanan: 1 Buah
- Etalase: Semua Etalase

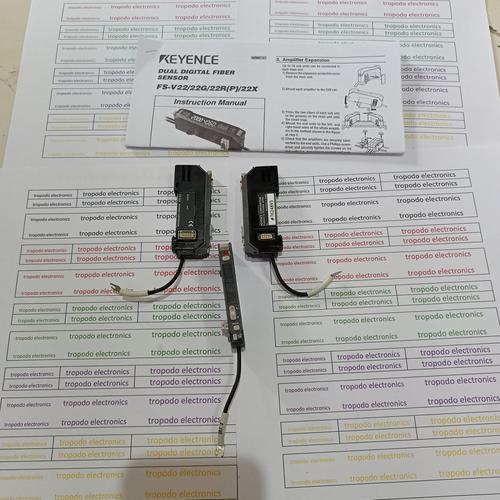

Barang bekas sisa proyek. Ada instruction manual nya
Kabel nya tinggal pendek (kurang lebih 10 cm), karena terlanjur dipotong untuk proyek
Jadi unit ini adalah Expansion dari Unit FS V21. Jadi pemasangannya adalah menginduk ke FS V21 dengan cara ditempelkan ke body FS V21 (sudah ada sockets untuk couplingnya / koneksinya). Powernya ikut FS V21
Spesifikasi nya:
Dual Digital Fiber Optic Sensors Fiber Amplifier Expansion Unit NPN KEYENCE FS-V22
Digital Fiber Optic Sensors FS-V20 series FS-V22 Fiber Amplifier, Cable Type, Main Unit, NPN
Model
FS-V22
Type
Main unit: 1-output with cable
Light source LED
Red LED
Response time
250 µs (FINE) /500 µs (TURBO) /1 ms (SUPER TURBO) /4 ms (ULTRA TURBO) /500 µs (HIGH RESOLUTION) /50 µs (HIGH SPEED)
Output selection
Light-ON/Dark-ON selectable
Detection mode
Light intensity/rising edge/falling edge
Shift function
Max. ±1,999 (variable)
Timer function
Variable range
1 to 500 ms
[1 to 30 ms (in 1 ms increments), 30 to 50 ms (in 2 ms increments), 50 to 200 ms (in 10 ms increments), 200 to 500 ms (in 50 ms increments)]
Accuracy
±10 % of the Preset Value
Control output
100 mA max. (40VDC max), Residual voltage: 1Vmax.
Rating
Power voltage
12 to 24 VDC ±10 %, Ripple (P-P) 10 % or less
Power consumption
Normal
S-APC OFF: 580 mW max.(24 mA max. at 24 VDC), S-APC ON: 720 mW max.(30 mA max. at 24 VDC)*1
ECO half
S-APC OFF: 480 mW max.(20 mA max. at 24 VDC), S-APC ON: 600 mW max.(25 mA max. at 24 VDC)*1
ECO all
S-APC OFF: 430 mW max.(18 mA max. at 24 VDC), S-APC ON: 550 mW max.(23 mA max. at 24 VDC)*1
Environmental resistance
Ambient light
Incandescent lamp: 20,000 lux max., Sunlight: 30,000 lux max.
Ambient temperature
-10 to +55 °C 14 to 131 °F (No freezing)*2
Relative humidity
35 to 85 % RH (No condensation)
Vibration resistance
10 to 55 Hz, Double amplitude 1.5 mm 0.06", 2 hours in each of the X, Y, and Z directions
Shock resistance
500 m/s2, 3 times in each of the X, Y, and Z directions
Kabel nya tinggal pendek (kurang lebih 10 cm), karena terlanjur dipotong untuk proyek
Jadi unit ini adalah Expansion dari Unit FS V21. Jadi pemasangannya adalah menginduk ke FS V21 dengan cara ditempelkan ke body FS V21 (sudah ada sockets untuk couplingnya / koneksinya). Powernya ikut FS V21
Spesifikasi nya:
Dual Digital Fiber Optic Sensors Fiber Amplifier Expansion Unit NPN KEYENCE FS-V22
Digital Fiber Optic Sensors FS-V20 series FS-V22 Fiber Amplifier, Cable Type, Main Unit, NPN
Model
FS-V22
Type
Main unit: 1-output with cable
Light source LED
Red LED
Response time
250 µs (FINE) /500 µs (TURBO) /1 ms (SUPER TURBO) /4 ms (ULTRA TURBO) /500 µs (HIGH RESOLUTION) /50 µs (HIGH SPEED)
Output selection
Light-ON/Dark-ON selectable
Detection mode
Light intensity/rising edge/falling edge
Shift function
Max. ±1,999 (variable)
Timer function
Variable range
1 to 500 ms
[1 to 30 ms (in 1 ms increments), 30 to 50 ms (in 2 ms increments), 50 to 200 ms (in 10 ms increments), 200 to 500 ms (in 50 ms increments)]
Accuracy
±10 % of the Preset Value
Control output
100 mA max. (40VDC max), Residual voltage: 1Vmax.
Rating
Power voltage
12 to 24 VDC ±10 %, Ripple (P-P) 10 % or less
Power consumption
Normal
S-APC OFF: 580 mW max.(24 mA max. at 24 VDC), S-APC ON: 720 mW max.(30 mA max. at 24 VDC)*1
ECO half
S-APC OFF: 480 mW max.(20 mA max. at 24 VDC), S-APC ON: 600 mW max.(25 mA max. at 24 VDC)*1
ECO all
S-APC OFF: 430 mW max.(18 mA max. at 24 VDC), S-APC ON: 550 mW max.(23 mA max. at 24 VDC)*1
Environmental resistance
Ambient light
Incandescent lamp: 20,000 lux max., Sunlight: 30,000 lux max.
Ambient temperature
-10 to +55 °C 14 to 131 °F (No freezing)*2
Relative humidity
35 to 85 % RH (No condensation)
Vibration resistance
10 to 55 Hz, Double amplitude 1.5 mm 0.06", 2 hours in each of the X, Y, and Z directions
Shock resistance
500 m/s2, 3 times in each of the X, Y, and Z directions
