ldr LDR light dependent resistor sensor cahaya
Rp1.200
- Kondisi: Baru
- Min. Pemesanan: 1 Buah
- Etalase: Aneka Komponen Elektronika
READY STOK
Selama masih ada dietalase dan bisa di klik beli Bosku
HARGA / PCS

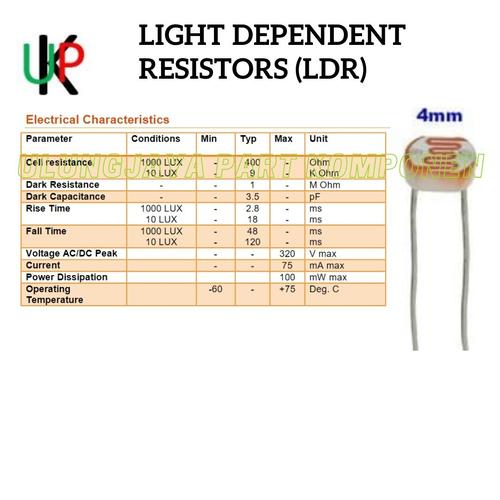

LDR light dependent resistors, size 4mm
LDR photoresistor.
Applicable to photoelectric control, indoor light control, alarm, industrial control, light control switch, electronic toys, etc.
Resin sealed.
Maximum Voltage: 150 Volt DC.
Maximum Wattage: 100mW.
Specifications:
Main Material: iron
Maximum Voltage: 150 Volt DC
Maximum Wattage: 100mW
Operating Temperature: -30~70C
Spectral Peak: 540nm
Light Resistance(10 Lux): 20-45K
Dark Resistance: 2M
Response time: Rise: 20ms; Drop: 30ms
Analog Applications :
•Camera Exposure Control •Auto Slide Focus - dual cell •Photocopy Machines - density of toner •Colorimetric Test Equipment •Densitometer •Electronic Scales - dual cell •Automatic Gain Control – modulated light source •Automated Rear View Mirror
Digital Applications :
•Automatic Headlight Dimmer •Night Light Control •Oil Burner Flame Out •Street Light Control •Absence / Presence (beam breaker) •Position Sensor
Selama masih ada dietalase dan bisa di klik beli Bosku
HARGA / PCS
LDR light dependent resistors, size 4mm
LDR photoresistor.
Applicable to photoelectric control, indoor light control, alarm, industrial control, light control switch, electronic toys, etc.
Resin sealed.
Maximum Voltage: 150 Volt DC.
Maximum Wattage: 100mW.
Specifications:
Main Material: iron
Maximum Voltage: 150 Volt DC
Maximum Wattage: 100mW
Operating Temperature: -30~70C
Spectral Peak: 540nm
Light Resistance(10 Lux): 20-45K
Dark Resistance: 2M
Response time: Rise: 20ms; Drop: 30ms
Analog Applications :
•Camera Exposure Control •Auto Slide Focus - dual cell •Photocopy Machines - density of toner •Colorimetric Test Equipment •Densitometer •Electronic Scales - dual cell •Automatic Gain Control – modulated light source •Automated Rear View Mirror
Digital Applications :
•Automatic Headlight Dimmer •Night Light Control •Oil Burner Flame Out •Street Light Control •Absence / Presence (beam breaker) •Position Sensor
