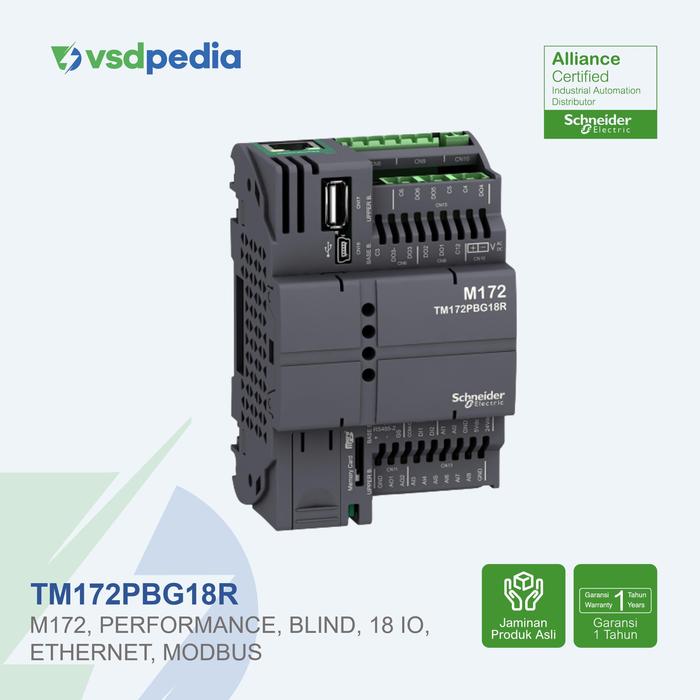

SCHNEIDER M172 Perf. Blind 18 I/Os, Eth, 2 RS485 TM172PBG18R

TM172PBG18R
Controller, Modicon M171/M172/M173, Performance, Blind, 18 IO, Ethernet, Modbus

100% Produk Original Schneider dan Garansi Resmi 12 Bulan

TENTANG PRODUK
This product is part of the Modicon M171/M172 range, an offer of programmable controllers for HVAC solutions. This programmable controller offers 2 discrete inputs with sink or source (positive/negative) up to 2kHz discrete logic. It is a module with discrete input voltage of 24V AC/DC, 5mA. It features 3 LEDs for programmable and 1 LED for power signaling. It is an IP20 rated product. The main application of this module is HVAC control. This product is certified by CE, RCM, EAC, CSA and CURus. It meets IEC 61000-4-2, EN 60068-2-6 Fc, IEC 61000-4-3, IEC 61000-4-5, EN 60730-1 and EN 60730-2-9 standards. It is suitable for DIN rail mount and panel mounting with accessory. Modicon M171/M172 benefits maximize profitability and energy efficiency by using scalable automation control with the Modicon M171/M172. Modicon M171/M172 logic controllers and intuitive software EcoStruxure Machine Expert - HVAC are designed for maximizing profitability and energy efficiency.

SPESIFIKASI
= Main =
1. Range of product : Modicon M171/M172
2. Product or component type : Programmable controllers
3. Product specific application : HVAC
4. Variant : Programmable
5. Total inputs/outputs : 18
6. Discrete input number : 2
7. Discrete output number :
- 1 for relay outputs SPDT with independent common
- 2 for relay outputs SPST with same common
- 3 for relay outputs SPST with independent common
8. Discrete output current :
- 3 A for relay SPST
- 3 A for relay SPDT
9. Analogue input number : 8 configurable by pair
10. Analogue output number : 2 voltage/current, range: 4...20 mA or 0...10 V or PWM (2 kHz)
= Complementary =
1. Number of port :
- 1 CAN port - screw terminal block
- 1 USB type A - USB type A female
- 1 USB type mini B - USB device port Mini-B
- 2 RS485 - screw terminal block (Modbus serial link or BACnet MS/TP)
- 1 Ethernet - RJ45 (Modbus TCP and BACnet IP with webserver)
2. Input/output number :
- 2 analog output(s)
- 6 digital output(s)
- 8 analog input(s)
- 2 digital input(s)
3. Discrete input logic : Sink or source (positive/negative) up to 2 kHz
4. Discrete input voltage : 24 V AC/DC
5. Discrete input current : 5 mA AC/DC
6. Input impedance : 10 kOhm
7. Analogue input type :
- NTC NK103 Beta 3977 temperature probe - 40...137 °C - resolution: 0.1 °C at 10 kOhm (at 25 °C)
- NTC 103AT-2 Beta 3435 temperature probe - 50...110 °C - resolution: 0.1 °C at 10 kOhm (at 25 °C)
- voltage 0...10 V - resolution: 1 digit at > 10 kOhm
- voltage 0...5 V - resolution: 1 digit at > 20 kOhm (absolute or ratiometric)
- impedance 0...1500 hOhm - resolution: 1 hOhm at 10 kOhm
- impedance 0...300 daOhm - resolution: 1 daOhm at 1500 Ohm
- PTC temperature probe - 55...150 °C - resolution: 0.1 °C at 1500 Ohm
- Pt 1000 temperature probe - 200...850 °C - resolution: 0.1 °C at 1500 Ohm
- current 0...20 mA/4...20 mA - resolution: 1 digit at < 150 Ohm
- direct input at 10 kOhm (Dry contact)
8. Measurement accuracy :
- 0...20 mA 0...4 mA +/- 2 % of full scale +/- 1 digit
- 0...20 mA 4...20 mA +/- 1 % of full scale +/- 1 digit
- 4...20 mA +/- 1 % of full scale +/- 1 digit
- 0...10 V +/- 1 % of full scale +/- 1 digit
- 0...5 V +/- 1 % of full scale +/- 1 digit
- DaOhm 0...300 daOhm +/- 2.5 daOhm
- NTC NK103 Beta 3977 - 40...+110 °C +/- 1 °C
- NTC NK103 Beta 3977 110...137 °C +/- 1.9 °C
- NTC 103AT-2 Beta 3435 - 50…110 °C +/- 1 °C
- PTC - 55...155 °C +/- 1.1 °C
- Pt 1000 - 200...-100 °C +/- 10 °C
- Pt 1000 - 100...-50 °C +/- 2.5 °C
- Pt 1000 - 50...100 °C +/- 1.5 °C
- Pt 1000 100…400 °C +/- 2.4 °C
- Pt 1000 400...850 °C +/- 10 °C
- HOhm 0...750 hOhm +/- 8.5 hOhm
- HOhm 750 hOhm...1500 hOhm +/- 24 hOhm
9. Sensor power supply :
- 5 V DC at 40 mA supplied by the controller
- 24 V DC at 100 mA supplied by the controller
10. [Us] rated supply voltage :
- 24 V +/- 10 % AC
- 20...38 V DC
11. Power consumption in W : 11 W at 24 V AC/DC
12. Realtime clock : Built-in clock, clock drift <= 30 s/month at -20…60 °C
13. Display type : Without display
14. Overvoltage category : II
15. Local signalling :
- 1 LED (red) for programmable
- 1 LED (yellow) for programmable
- 1 LED (green) for programmable
- 1 LED (green) for power
16. Mounting support :
- Panel mounting with accessory
- DIN rail
