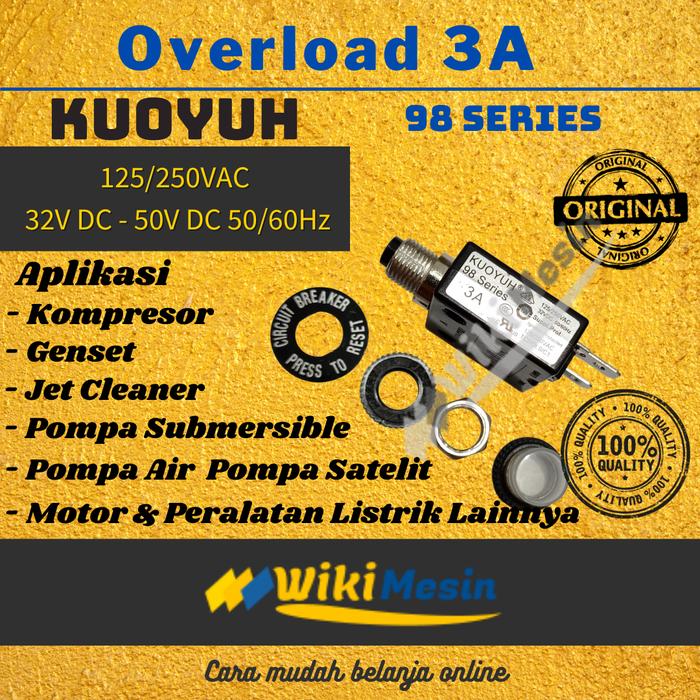

ORIGINAL Overload Thermal Circuit Breaker Kuoyuh 98 Series Push Button - 3A

[ORIGINAL TAIWAN KUOYUH] - [FREE CAP RING DAN PLATRING]
READY STOCK - PESAN DI HARI KERJA LANGSUNG DI KIRIM DI HARI YANG SAMA

Note: Hati-hati dengan produk merek tidak jelas atau barang tiruan dan berkualitas jelek, jangan hanya karna harga murah Anda membeli produk kualitas jelek dan palsu.

KUOYUH SERIES 98 ASLI 100% DAN TOP SELLING DI HAMPIR SELURU NEGARA BESAR DI DUNIA

Kuoyuh Overload Series 98 dapat digunakan pada berbagai jenis mesin atau perangkat elektronik, sebagai contoh, overload kuoyuh ini banyak digunakan di mesin pompa, genset, kompresor, mobil / motor dan lain nya yang membutuhkan pengamanan.

Pilihan Amper mulai dari 3A/4A/5A/6A/7A/8A/10A/12A/15A/20A25A/30A/32A/40A/42A/45A/50A

INFO:
Technical Data :
- Current Rating Range : 3A/4A/5A/6A/7A/8A/10A/12A/115A/20A25A/30A/32A/40A/42A/45A/50A
- Input Voltage Rating : 125/250V AC; 32V DC - 50V DC
- Frequency : 50/60Hz
- Interrupting Capacity : 125/250V AC x 1000A(UL 1077)
- Max Internal Resistance : - Typical Life : 1000 Operations at 200% overload
- Insulation Co-ordination : Rated impulse withstand voltage 2.5kV
- Dielectric Strengh : > 1500V AC/min
- Insulation Resistance : > 100MOHM (DC 500V)
- Degree of protection : Terminal Area IP00, Operating Area IP40
MECHANICAL/ENVIRONMENTAL DATA
- Operating Ambient Temperature : -10C to +60C
- Termination : 250" (6.35mm) quick connects or solder terminals
- Mounting : Various options

Compliance With RoHS
- The product accords with the requirement oh ROHS (2011/65/EU)
- Contacts use Exempted item of RoHS Directive 2010/571/EU 8(a)

Compliance With Reach, PAHS, PH1, PH2, PH3
- Ignition Proof : Yes, UL PEQZ2.E155159

Typical Application
- Transforms, Motors, Battery Chargers, Power Supplies, Appliances, Extra Low Voltage Systems, Machinery, etc.

Calibration at 25C
- 100% of Rated Current : Hold, No Trip
- 150% of Rated Current : Trip W

Note:
- Sparepart dan accessoris tidak memiliki garansi
- Garansi diluar dari pergantian part
