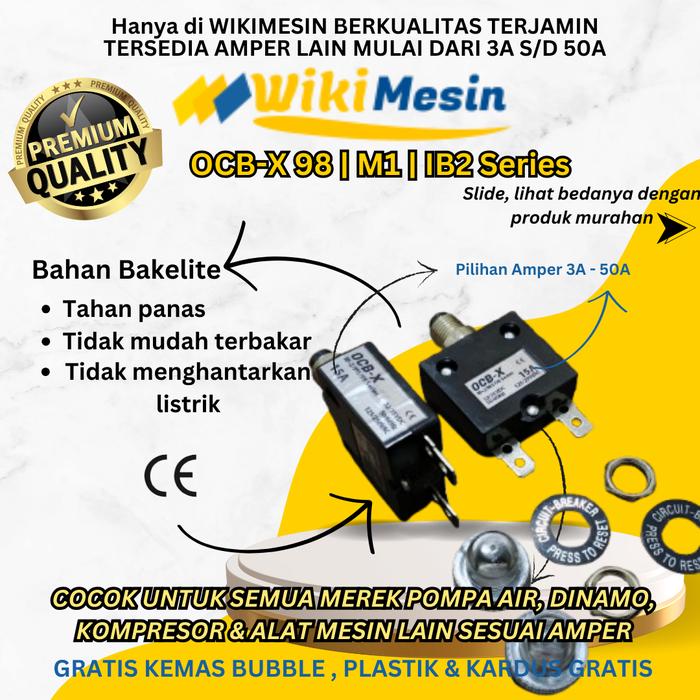

Overload 3A - 50A Circuit Breaker Push Button Switch Seri 98 M1 IB2 Relay - 20A

Rp105.000

Pilih amper: 20A

    [ORIGINAL OCB-X][FREE CAP & RING]
    READY STOCK - PESAN DI HARI KERJA LANGSUNG DI KIRIM DI HARI YANG SAMA


    Note: Hati-hati dengan produk merek tidak jelas atau barang tiruan dan berkualitas jelek, jangan hanya karna harga murah Anda membeli produk kualitas jelek dan palsu.


    OCB-X SERIES 98 IB2 M1 ASLI 100% DAN TOP SELLING DI HAMPIR SELURU NEGARA BESAR DI DUNIA


    OCB-X Overload Series 98 IB2 M1 dapat digunakan pada berbagai jenis mesin atau perangkat elektronik, sebagai contoh, overload kuoyuh ini banyak digunakan di mesin pompa, genset, kompresor, mobil / motor dan lain nya yang membutuhkan pengamanan.


    INFO:
    Technical Data :
    - Current Rating Range : 3A/4A/5A/6A/7A/8A/10A/12A/15A/16A/18A/20A/25A/30A/32A/35A/40A/42A/45A/50A
    - Input Voltage Rating : 125/250V AC; 32V DC - 50V DC
    - Frequency : 50/60Hz
    - Interrupting Capacity : 125/250V AC x 1000A(UL 1077)
    - Max Internal Resistance :
    - Typical Life : 1000 Operations at 200% overload
    - Insulation Co-ordination : Rated impulse withstand voltage 2.5kV
    - Dielectric Strengh : > 1500V AC/min
    - Insulation Resistance : > 100MOHM (DC 500V)
    - Degree of protection : Terminal Area IP00, Operating Area IP40
    MECHANICAL/ENVIRONMENTAL DATA
    - Operating Ambient Temperature : -10C to +60C
    - Termination : 250" (6.35mm) quick connects or solder terminals
    - Mounting : Various options


    Compliance With RoHS
    - The product accords with the requirement oh ROHS (2011/65/EU)
    - Contacts use Exempted item of RoHS Directive 2010/571/EU 8(a)


    Compliance With Reach, PAHS, PH1, PH2, PH3
    - Ignition Proof : Yes, UL PEQZ2.E155159


    Typical Application
    - Transforms, Motors, Battery Chargers, Power Supplies, Appliances, Extra Low Voltage Systems, Machinery, etc.


    Calibration at 25C
    - 100% of Rated Current : Hold, No Trip
    - 150% of Rated Current : Trip W


    Note:
    - Sparepart dan accessoris tidak memiliki garansi
    - Garansi diluar dari pergantian part yang diakibatkan oleh pemakaian.
