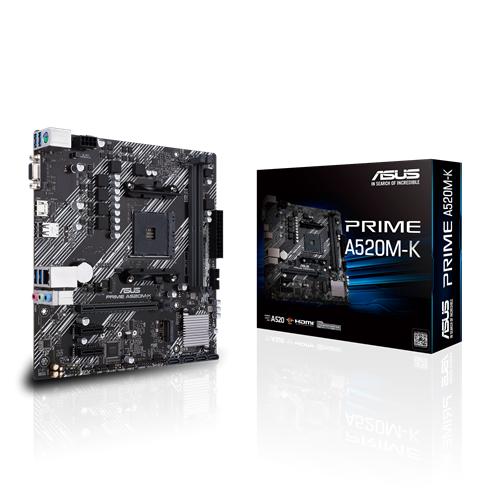

ASUS PRIME A520M-K MOTHERBOARD (DDR4, A520, AMD AM4) - A520M-K

GARANSI RESMI ASUS INDONESIA 3 TAHUN

SPECIFICATION :

Supported CPU
CPU Socket Type
AM4

CPU Type
AMD Socket AM4 for 3rd Gen AMD Ryzen and 3rd Gen AMD Ryzen with Radeon Graphics Processors*

Chipsets
Chipset
AMD A520

Memory
Number of Memory Slots
2288pin

Memory Standard
DDR4 4600(O.C.)/ 4400(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3333(O.C.)/ 3200/ 3000/ 2800/ 2666/ 2400/ 2133 MHz, Un-buffered Memory*

Maximum Memory Supported
64GB

Channel Supported
Dual Channel

Expansion Slots
PCI Express 3.0 x16
3rd Gen AMD Ryzen and 3rd Gen AMD Ryzen with Radeon Graphics Processors
1 x PCIe 3.0 x16 slot (supports x16 mode)

PCI Express x1
AMD A520 Chipset
2 x PCIe 3.0 x1 slots

Storage Devices
SATA 6Gb/s
4 x SATA 6Gb/s

M.2
3rd Gen AMD Ryzen and 3rd Gen AMD Ryzen with Radeon Graphics Processors
M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)

Onboard Audio
Audio Chipset
Realtek ALC887

Audio Channels
7.1 Channels

Onboard LAN
LAN Chipset
Realtek RTL8111H

Max LAN Speed
10/100/1000Mbps

Physical Spec
Form Factor
Micro ATX

Dimensions (W x L)
8.9" x 8.7"

Power Pin
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector

Note :
- Wajib tanyakan stok sebelum order melalui Diskusi/ Chat (Ketersediaan Terbatas).
- Spesifikasi lengkap dapat dicek melalui website resmi masing- masing produk.
- Gambar hanya ilustrasi, versi produk dapat berbeda tergantung kebijakan vendor, namun tidak mengurangi spesifikasi dan fungsi produk.
- Simpan dus dan invoice pembelian untuk garansi.
- Jika belum paham silahkan tanya via Chat.
