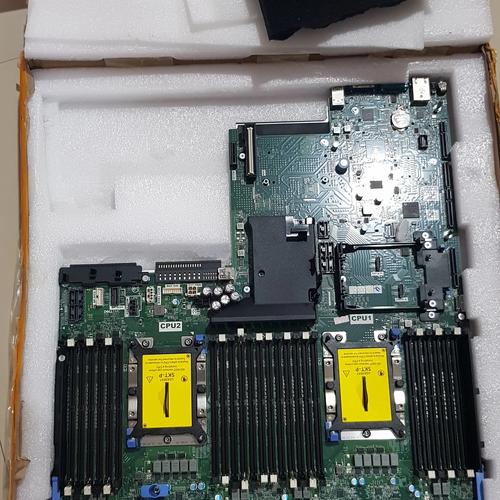

NEW Motherboard Server DELL EMC POWEREDGE R740 6G98X 0WGD1

The PowerEdge R740 system supports;
1. up to two Intel Xeon Processor Scalable Family processors, up to 28 cores per processor.
2. Operating systems: Canonical Ubuntu LTS, Citrix XenServer, Microsoft Windows Server with Hyper-V, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi.
3. up to two AC or DC power supply units (PSUs).
4. system supports CR 2032 3.0-V lithium coin cell system battery.
5. Internal storage controller cards: PowerEdge RAID Controller (PERC) H330, PERC H730P, PERC H740P, HBA330, S140, Boot Optimized Server Storage (BOSS-S1), H750 (adapter only), H350 (adapter only), and HBA350i (adapter only).
The BOSS card is a simple RAID solution card designed specifically for booting a server's operating system. The card supports up to two 6 Gbps M.2 SATA drives. The BOSS adapter card has a x8 connector using PCIe gen 2.0 x2 lanes, available only in the low-profile and half-height form factor.
6. External storage controller cards: PERC H840, 12Gbps SAS HBA, and HBA355e.
7. Two USB 2.0-compliant ports on the front of the system
One internal USB 3.0-compliant port
One optional USB 3.0-compliant port on the front of the system
One micro USB 2.0-compliant port in the front of the system for iDRAC Direct
Two USB 3.0-compliant ports on the back of the system
The PowerEdge R740 system supports up to four Network Interface Controller (NIC) ports that are integrated on the network daughter card (NDC), and are available in the following configurations:
Four RJ-45 ports that support 10, 100 and 1000 Mbps
Four RJ-45 ports that support 100 M, 1 G and 10 Gbps
Four RJ-45 ports, where two ports support maximum of 10 G and the other two ports maximum of 1 G
Two RJ-45 ports that support up to 1 Gbps and 2 SFP+ ports that support up to 10 Gbps
Four SFP+ ports that support up to 10 Gbps
Two SFP28 ports that suppo
