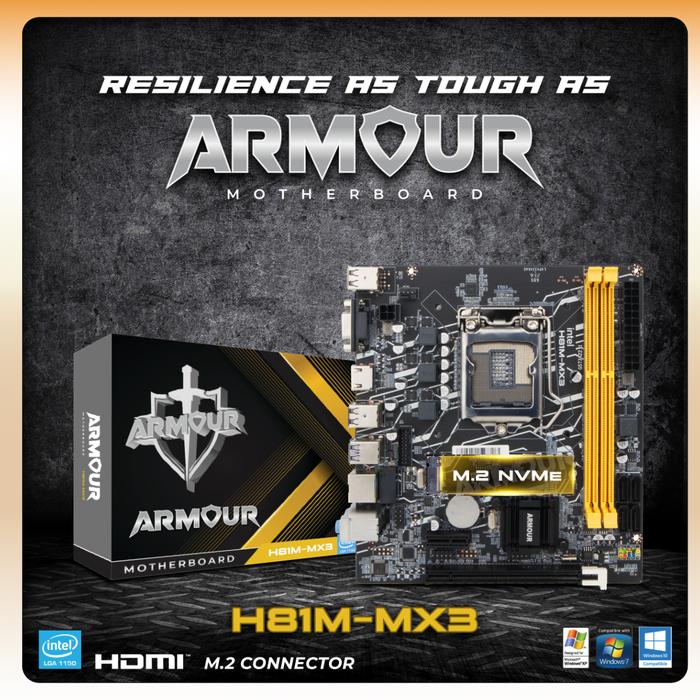

Motherboard H81 Armour H81M-MX3 Mobo Socket LGA 1150

Spesifikasi
Merk : ARMOUR
Model : Intel H81 NVME
CPU : Support LGA 1150 Socket i3/i5/i7 series CPU
Chipset : Intel H81/B85 Chipset
Memory : 2*240-pin DDR III slots, Memory up to 16GB, Support dual-channel DDR III 1066/1333/1600MHz memory
BIOS : AMI BIOS
I/O Interface :
1x PS/2 Port
1x HDMI Port
1x VGA Port
1x DVI Port
4x USB 2.0 compatible with USB 1.1
2x USB 3.0 Port
1x RJ45 Port
1x Audio Port (Line In/Line Out/MIC In)
OnBoard Interface :
1x 24-pin ATX power connector
1x 8-pin ATX 12V power connector
1x USB connectors, can support 2*USB 2.0
1x USB connectors, can support 2xUSB 2.0 (B85 chipset optional)
1x F_AUDIO connector
1x F_PANEL connector
1x SPEAKER connector
2x FAN connectors
3x Serial ATA connection ports
Integrated Sound :
with 6-channel HD Audio Codec onboard
provides front audio interface; provides front stereo mic interface
Integrated LAN : with 10/100/1000 Mbps LAN Onboard (Optional)
Expansion Slot :
1x PCI Express x16 Slot
1x PCI Express x1 Slot
1x M.2 Slot
Dimension : Micro-ATX (17*21.5cm)
