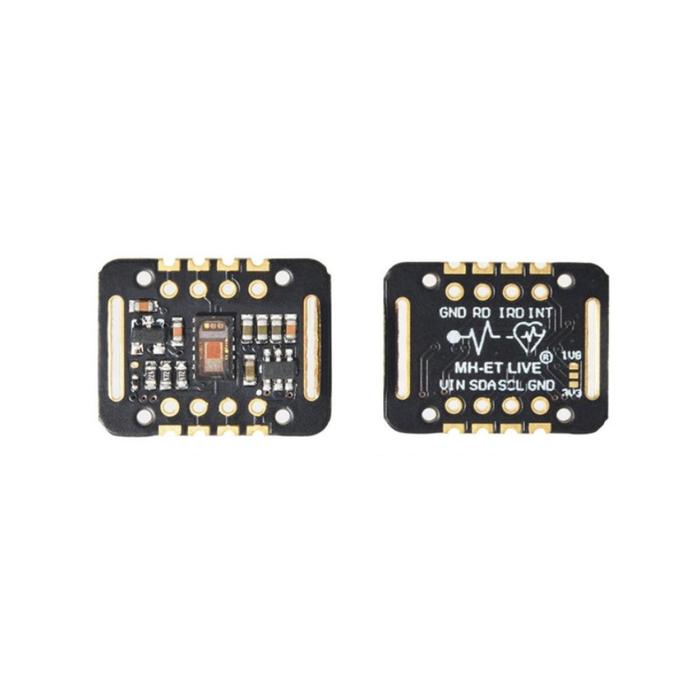

MAX30102 High Sensitivity Pulse Oximeter & Heart Rate Sensor Module

Product Features
The MAX30102 is an integrated pulse oximeter and heart rate monitor biosensor module. It integrates a red LED and an infrared LED, photodetector, optical device, and low-noise electronic circuitry with ambient light suppression. The MAX30102 uses an 18V power supply and a separate 50V power supply for internal LEDs. Wear the device for heart rate and blood oxygen collection, and wear it on your fingers, earlobes and wrists. The standard I2C-compatible communication interface can transmit the collected values to the Arduino, KL25Z and other microcontrollers for heart rate and blood oxygen calculation. In addition, the chip can also shut down the module through software, the standby current is close to zero, and the power supply is always maintained. Because of its excellent performance, the chip is widely used in the Samsung Galaxy S series mobile phones. The chip integrates a glass cover to effectively eliminate external and internal light interference and has the best reliable performance.

Product Parameters
- LED peak wavelength: 660nm/880nm
- LED supply voltage: 3.3~5V
- Detection signal type: Light reflection signal (PPG)
- Output signal interface: I2C interface
- Communication interface voltage: 18~3.3V~5V (optional)
- Board reserved assembly hole size: 0.5X8.5mm

Pin Description
- VIN: main power supply input terminal 1.8V-5V;
- 3-bit pad: Select the pull-up level of the bus, depending on the pin master voltage, select 1.8v or 3.3V (this terminal contains 3.3V and above) SCL: Connect the clock of I2C bus;
- SDA: data connected to the I2C bus;
- INT : Interrupt pin of the MAX30102 chip;
- RD: RED of the MAX30102 chip, LED ground terminal, - generally not connected;
- IRD: The IR, LED grounding of the MAX30102 chip is generally not connected;
- GND : Ground wire
