EL-MF4-CN 4K RFID 13.56MHz Card Tag NFC ISO14443A Kartu RC522 Classic - CNB (Polos)

## EL-MF4-CNB

https://electron.id/produk/el-mf4-cnb/

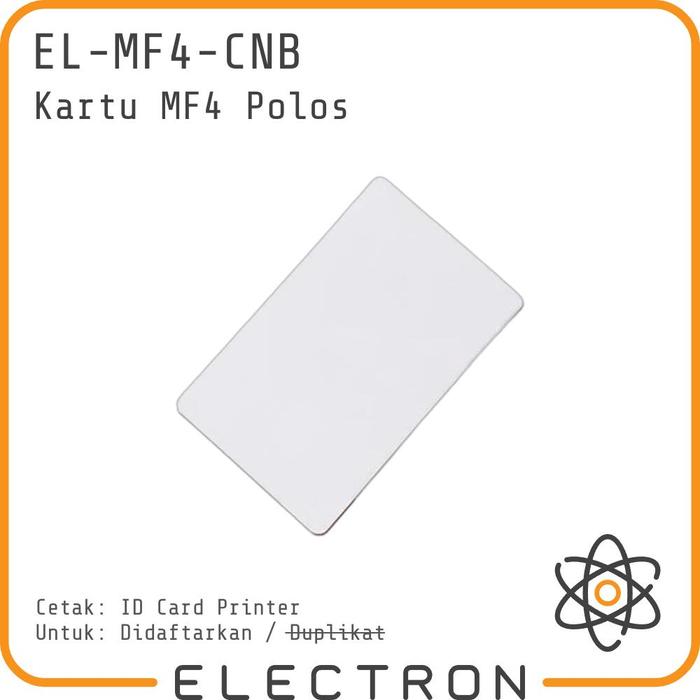

Kartu putih polos standar, UID tidak bisa diganti. Bisa untuk cetak menggunakan UV Printer.

## EL-MF4-CNF

https://electron.id/produk/el-mf4-cnf/

Kartu putih polos coated, cocok untuk cetak menggunakan ID Card Printer (Thermal).

## Spesifikasi

- Dimensi: 85.6 mm x 54 mm
- Material: PVC

## Spesifikasi Chip

Chip yang spesifikasinya mirip dengan NXP MIFARE Classic EV1 4K, dengan kualitas baik, memory 4kB bisa di-write dan bisa di-encrypt.

Bisa menyimpan data dengan memory total 4kB, atau 3,440 bytes setelah dikurangi reserved blocks.

- UID: 4 Byte
- EEPROM: 4 kB, organized in:
- 32 sectors of 4 blocks (One block contains 16 bytes)
- 8 sectors of 16 blocks (One block contains 16 bytes)
- Read/write time: 2-5 ms
- Protokol: ISO/IEC 14443-3 Type-A
- Bit Rate: 106Kbit/s
- Operating Temperature: -20C to +85C
- Operating Frequency: 13.56MHz
- Data Retention: 10 years
- Write Endurance: 100000

Kompatibel dengan:

- https://www.tokopedia.com/electron/el-1356r06-rs232-rfid-13-56mhz-hf-card-reader-iso14443a-13-56-mhz-usb
- https://www.tokopedia.com/electron/rfid-rc522-arduino-reader-writer-module-kit-spi-13-56-mhz-mifare
- https://www.tokopedia.com/electron/electron-el-1356rwg01-rfid-wiegand-reader-13-56mhz-access-akses
- https://www.tokopedia.com/electron/el-1356rp05-rfid-nfc-14443-card-reader-portable-micro-usb-android-otg
- https://www.tokopedia.com/electron/acr122-acr122u-nfc-rfid-reader-writer-smart-card-mifare-felica
- https://www.tokopedia.com/electron/acr1281u-c8-acr120u-iso-14443-13-56-mhz-rfid-reader-writer-acr120
