RFID 13.56 MHz Mifare Classic 4K Card Tag NFC HF ISO14443A Kartu RC522
Rp18.000
- Kondisi: Baru
- Min. Pemesanan: 1 Buah
- Etalase: Kartu

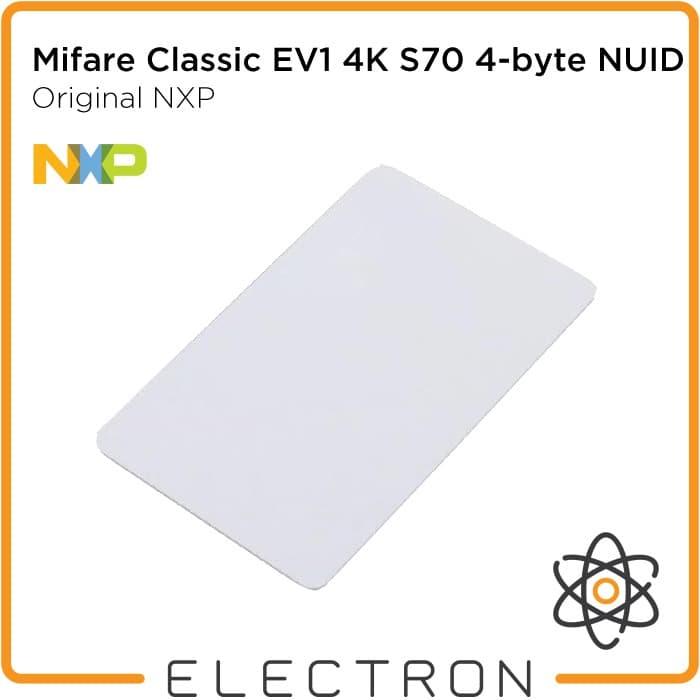

NXP Mifare Classic 4K S70-3 Card
Mifare 4K dengan 4-byte NUID. Bisa untuk menyimpan data dengan memory total 4kB, atau 3,440 bytes setelah dikurangi reserved blocks.
S70 NXP Model Number: MF1S703
Sesuai dengan standar Protokol ISO/IEC 14443 Type A
Frekuensi: 13,56 MHz
Communication baud rate: 106Kbit/s
Jarak baca: 1-10 cm
Daya tahan penggunaan > 100,000 kali
Serial Number: 4-byte NUID
EEPROM:
- 4 kB, organized in 32 sectors of 4 blocks and 8 sectors of 16 blocks (one block consists of 16 byte)
- Data retention time of 10 years
- User definable access conditions for each memory block
- Write endurance 200,000 cycles
Dimensi: 85.6 mm x 54 mm
Material: PVC
Kartu warna putih polos, bisa untuk diprint dengan thermal printer.
Kompatibel dengan:
- https://www.tokopedia.com/electron/el-1356ap02-rfid-13-56mhz-standalone-access-control-reader-akses
- https://www.tokopedia.com/electron/hf-rfid-proximity-desktop-reader-1356-mhz
- https://www.tokopedia.com/electron/el-1356r04-13-56mhz-rfid-usb-card-reader-13-56-mhz-contactless-mifare
- https://www.tokopedia.com/electron/el-1356r06-rs232-rfid-13-56mhz-hf-card-reader-iso14443a-13-56-mhz-usb
- https://www.tokopedia.com/electron/rfid-rc522-arduino-reader-writer-module-kit-spi-13-56-mhz-mifare
- https://www.tokopedia.com/electron/electron-el-1356rwg01-rfid-wiegand-reader-13-56mhz-access-akses
- https://www.tokopedia.com/electron/el-1356rp05-rfid-nfc-14443-card-reader-portable-micro-usb-android-otg
- https://www.tokopedia.com/electron/acr122-acr122u-nfc-rfid-reader-writer-smart-card-mifare-felica
- https://www.tokopedia.com/electron/acr1281u-c8-acr120u-iso-14443-13-56-mhz-rfid-reader-writer-acr120
- https://www.tokopedia.com/electron/acr38u-i1-acs-acr38u-smart-card-sim-reader-writer-acr38-smartcard
- https://www.tokopedia.com/electron/acr39u-u1-acs-smart-card-contact-reader-writer-acr39-smartcard-usb
- https://www.tokopedia.com/electron/acr39u-uf-acs-usb-c-smart-card-contact-reader-writer-acr39-smartcard-usb
Mifare 4K dengan 4-byte NUID. Bisa untuk menyimpan data dengan memory total 4kB, atau 3,440 bytes setelah dikurangi reserved blocks.
S70 NXP Model Number: MF1S703
Sesuai dengan standar Protokol ISO/IEC 14443 Type A
Frekuensi: 13,56 MHz
Communication baud rate: 106Kbit/s
Jarak baca: 1-10 cm
Daya tahan penggunaan > 100,000 kali
Serial Number: 4-byte NUID
EEPROM:
- 4 kB, organized in 32 sectors of 4 blocks and 8 sectors of 16 blocks (one block consists of 16 byte)
- Data retention time of 10 years
- User definable access conditions for each memory block
- Write endurance 200,000 cycles
Dimensi: 85.6 mm x 54 mm
Material: PVC
Kartu warna putih polos, bisa untuk diprint dengan thermal printer.
Kompatibel dengan:
