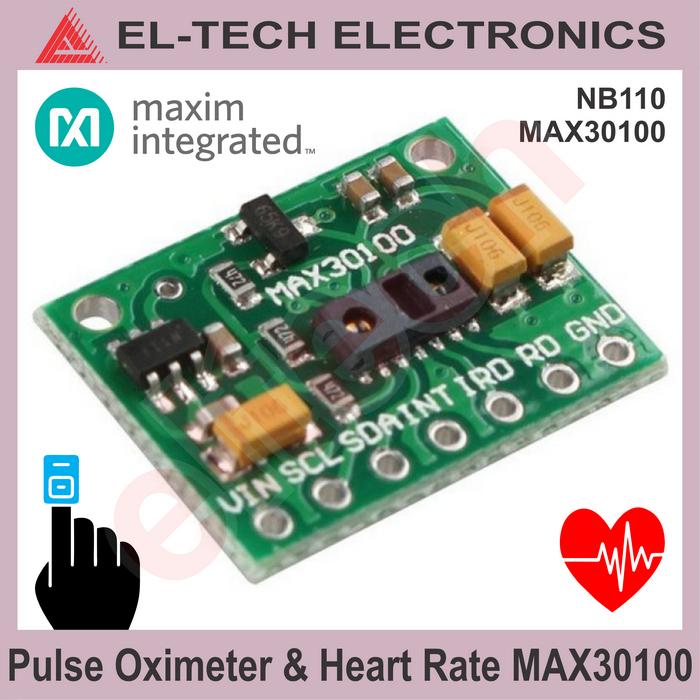

Pulse Oximeter Heart Rate Finger Oksigen MAX30100 MAX30102 30100 30102 - MAX30100
Rp23.900
Pilih ukuran: MAX30100
Barang, merk, kode sesuai foto
MAX30100 & MAX30102
Pulse Oximeter and Heart-Rate Sensor IC for Wearable Health
General Description:
The MAX3010x is an integrated pulse oximetry and heartrate monitor sensor solution.
It combines two LEDs, a photodetector, optimized optics, and low-noise analog signal processing to detect pulse oximetry and heart-rate signals.
The MAX3010x operates from 1.8V and 3.3V power supplies and can be powered down through software with negligible standby current, permitting the power supply to remain connected at all times.
Applications:
- Wearable Devices
- Fitness Assistant Devices
- Medical Monitoring Devices
- Smartphones
- Tablets
Benefits and Features:
- Complete Pulse Oximeter and Heart-Rate Sensor Solution Simplifies Design
- Integrated LEDs, Photo Sensor, and High-Performance Analog Front-End
- MAX30100 = 5.6mm x 2.8mm x 1.2mm 14-Pin Optically Enhanced System-in-Package
- MAX30102 = 5.6mm x 3.3mm x 1.55mm 14-Pin Optically Enhanced System-in-Package
- Ultra-Low-Power Operation Increases Battery Life for Wearable Devices
- Programmable Sample Rate and LED Current for Power Savings
- Ultra-Low Shutdown Current (0.7µA, typ)
- Advanced Functionality Improves Measurement Performance
- High SNR Provides Robust Motion Artifact Resilience
- Integrated Ambient Light Cancellation
- High Sample Rate Capability
- Fast Data Output Capability
- -40°C to +85°C Operating Temperature Range
MAX30100 & MAX30102
Pulse Oximeter and Heart-Rate Sensor IC for Wearable Health
General Description:
The MAX3010x is an integrated pulse oximetry and heartrate monitor sensor solution.
It combines two LEDs, a photodetector, optimized optics, and low-noise analog signal processing to detect pulse oximetry and heart-rate signals.
The MAX3010x operates from 1.8V and 3.3V power supplies and can be powered down through software with negligible standby current, permitting the power supply to remain connected at all times.
Applications:
- Wearable Devices
- Fitness Assistant Devices
- Medical Monitoring Devices
- Smartphones
- Tablets
Benefits and Features:
- Complete Pulse Oximeter and Heart-Rate Sensor Solution Simplifies Design
- Integrated LEDs, Photo Sensor, and High-Performance Analog Front-End
- MAX30100 = 5.6mm x 2.8mm x 1.2mm 14-Pin Optically Enhanced System-in-Package
- MAX30102 = 5.6mm x 3.3mm x 1.55mm 14-Pin Optically Enhanced System-in-Package
- Ultra-Low-Power Operation Increases Battery Life for Wearable Devices
- Programmable Sample Rate and LED Current for Power Savings
- Ultra-Low Shutdown Current (0.7µA, typ)
- Advanced Functionality Improves Measurement Performance
- High SNR Provides Robust Motion Artifact Resilience
- Integrated Ambient Light Cancellation
- High Sample Rate Capability
- Fast Data Output Capability
- -40°C to +85°C Operating Temperature Range
