Modul Sensor ECG EKG Electrocardiogram AD8232 pulse Heart Rate Monitor

SKU: K002
The AD8232 Single Lead Heart Rate Monitor is a cost-effective board used to measure the electrical activity of the heart. This electrical activity can be charted as an ECG or Electrocardiogram and output as an analog reading. ECGs can be extremely noisy, the AD8232 Single Lead Heart Rate Monitor acts as an op amp to help obtain a clear signal from the PR and QT Intervals easily._x000d_
_x000d_
The AD8232 is an integrated signal conditioning block for ECG and other biopotential measurement applications. It is designed to extract, amplify, and filter small biopotential signals in the presence of noisy conditions, such as those created by motion or remote electrode placement._x000d_
_x000d_
The AD8232 Heart Rate Monitor breaks out nine connections from the IC that you can solder pins, wires, or other connectors to. SDN, LO+, LO-, OUTPUT, 3.3V, GND provide essential pins for operating this monitor with an Arduino or other development board. Also provided on this board are RA (Right Arm), LA (Left Arm), and RL (Right Leg) pins to attach and use your own custom sensors. Additionally, there is an LED indicator light that will pulsate to the rhythm of a heart beat. Biomedical Sensor Pads and Sensor Cable are required to use the heart monitor and can be found in the Recommended Products section below._x000d_
_x000d_
Note: This product is NOT a medical device and is not intended to be used as such or as an accessory to such nor diagnose or treat any conditions._x000d_
_x000d_
Features:_x000d_
Operating Voltage - 3.3V_x000d_
Analog Output_x000d_
Leads-Off Detection_x000d_
Shutdown Pin_x000d_
LED Indicator_x000d_
3.5mm Jack for Biomedical Pad Connection_x000d_
_x000d_

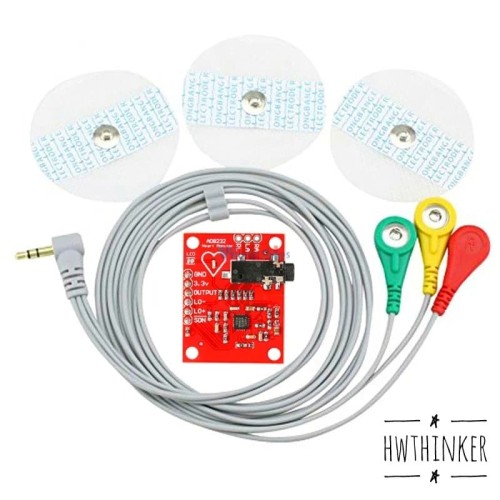

Packing List:_x000d_
AD8232 Breakout 1 pcs_x000d_
ECG cable 1 pcs_x000d_
Electrode 3 pcs
