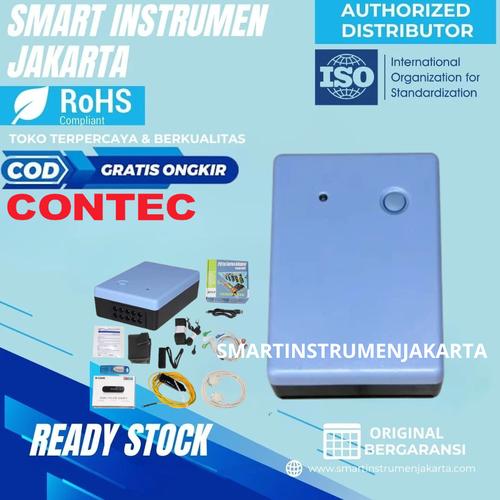

Contec 8000s Bluethoot Contec8000s Ecg ECG Analysis System Machine PC
Rp9.200.000
- Kondisi: Baru
- Min. Pemesanan: 1 Buah
- Etalase: Semua Etalase
CONTEC8000S Stress ECG Analysis System+Software
Introduction
The Stress ECG Analysis System is consist of sampling hardware device, special software system and exercise equipment. Its functions include 12 leads ECG synchronously sampling, and data storage, ST segment analysis, ECG review in dynamic/static/superimposed during the whole exercise process, and trend chart analysis of multiple parameters, multiple printable report, etc. The patient's exercise state can be recorded timely and accurately, which reflects patient’s heart function, providing reliable data for doctors in diagnoses.
Performance
Patient leak current: <10µA
Input impedance: ≥50MΩ
Frequency response: 0.05Hz～150Hz (-3dB~+0.4dB)
Time constant: ≥3.2s
Common mode rejection ratio (CMRR):＞60dB, ＞100dB (filter on)
Calibration voltage: 1mV
Sampling frequency: max. 1000 Hz
Sampling accuracy: max. 24bits
Input loop current: ≤50nA
Polarization resistance voltage: ±500mV
Noise level: ≤15µVp-p
Safety type: internally powered equipment, type BF
Accessories
Wireless network card 1pc
Lead cables 1pc
Electrodes 1pc
Grounding wire 1pc
Velcro 2pcs
Serial-port cable 1pc
CD 1pc
Software dog 1pc
Serial-port card 1pc
Physical Characteristic
Dimension: 94mm(L) *66mm(W)*31mm(H)
Weight: about 94.6g (without battery)
Introduction
The Stress ECG Analysis System is consist of sampling hardware device, special software system and exercise equipment. Its functions include 12 leads ECG synchronously sampling, and data storage, ST segment analysis, ECG review in dynamic/static/superimposed during the whole exercise process, and trend chart analysis of multiple parameters, multiple printable report, etc. The patient's exercise state can be recorded timely and accurately, which reflects patient’s heart function, providing reliable data for doctors in diagnoses.
Performance
Patient leak current: <10µA
Input impedance: ≥50MΩ
Frequency response: 0.05Hz～150Hz (-3dB~+0.4dB)
Time constant: ≥3.2s
Common mode rejection ratio (CMRR):＞60dB, ＞100dB (filter on)
Calibration voltage: 1mV
Sampling frequency: max. 1000 Hz
Sampling accuracy: max. 24bits
Input loop current: ≤50nA
Polarization resistance voltage: ±500mV
Noise level: ≤15µVp-p
Safety type: internally powered equipment, type BF
Accessories
Wireless network card 1pc
Lead cables 1pc
Electrodes 1pc
Grounding wire 1pc
Velcro 2pcs
Serial-port cable 1pc
CD 1pc
Software dog 1pc
Serial-port card 1pc
Physical Characteristic
Dimension: 94mm(L) *66mm(W)*31mm(H)
Weight: about 94.6g (without battery)
