E6B2 CWZ1X E6B2-CWZ1X E6B2 CWZ1X 1000P/R 1000 ppr Rotary Encoder PY39 - OMRON

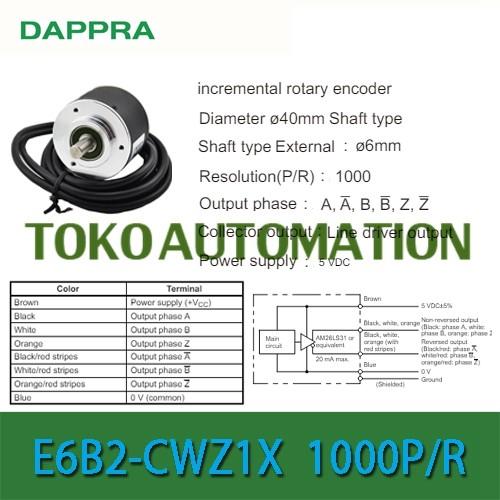

E6B2 CWZ1X E6B2-CWZ1X E6B2 CWZ1X 1000P/R 1000 ppr Rotary Encoder PY39 Description: Incremental, Resolution 1000 P/R, 40 mm-dia., Shaft model, Line driver output, Pre-wired models (2 m) Feature: Categorise Incremental Shaft model Diameter 40 mm dia. Power supply voltage 5 VDC±5% ripple (p-p) 5% max. Current consumption 160 mA max. Resolution 1000 P/R Inrush current Approx. 9 A (0.3 ms) Output phases A, -A, B, -B, Z and -Z Control output: Output type Line driver output Output voltage Vo: 2.5 V min. Vs: 0.5 V max. Load current High level (Io): -20 mA Low level (Is): 20 mA Starting positional point Equipped Max. response frequency 100 kHz Phase difference on output 90±45 ° between A and B (1/4 T ± 1/8 T) Rise and fall times of output 0.1 µs max. (Cable length: 2 m max., Io = -20 mA, Is = 20 mA) Starting torque 0.98 mN.m max. Moment of inertia 1 x 10-6 kg.m2 max. Shaft loading Radial: 30 N Thrust: 20 N
