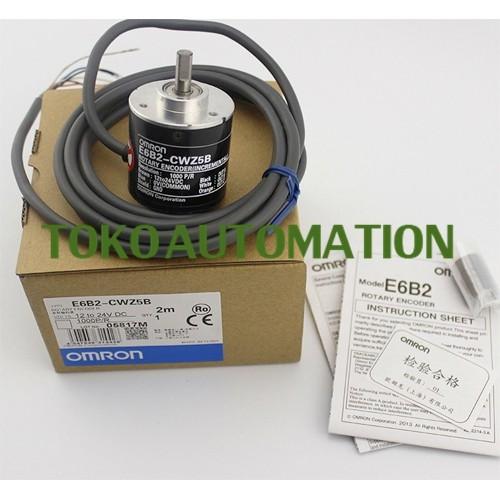

E6B2 CWZ5B E6B2-CWZ5B 1000P/R 1000PPR 40MM Dia Rotary Encoder PY88 - OMRON

E6B2 CWZ5B E6B2-CWZ5B 1000P/R 1000PPR 40MM Dia Rotary Encoder PY88 Description: Incremental, Resolution 1000 P/R, 40 mm-dia., Shaft model, PNP open collector, Pre-wired models (0.5 m) Feature: Categorise Incremental Shaft model Diameter 40 mm dia. Power supply voltage 12 to 24 VDC (-10% to +15%) Ripple (p-p) 5% max. Current consumption 100 mA max. Resolution 1000 P/R Inrush current Approx. 9 A (0.3 ms) Output phases A, B and Z Output type PNP open collector Load power supply voltage 30 VDC max. Source current 35 mA max. Residual voltage 0.4 V max. (at source current 35 mA) Starting positional point Equipped Max. response frequency 50 kHz Phase difference on output 90±45 ° between A and B (1/4 T ± 1/8 T) Rise and fall times of output 1 µs max. (Cable length: 2 m max., Sink current 10 mA) Starting torque 0.98 mN.m max. Moment of inertia 1 x 10-6 kg.m2 max. Shaft loading Radial: 30 N Thrust: 20 N
