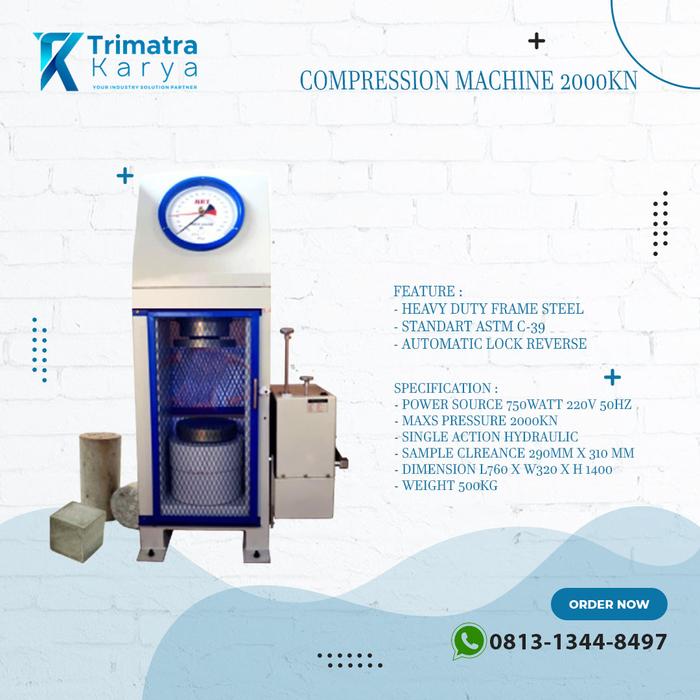

Compression Machine 2000KN

Concrete Compression Machine ASTM C-39 Frame : Heavy-duty welded steel contruction 30 cm profile steel columns 10 cm thick botom and upper and upper plate Hydraulic System : Mild-Steel cylinder, For 2000 kN Cap : Hard-chormed piston, 230 mm dia max working pressure 50.000 kPa Overal dimension 300 mm dia x 320 mm height. Single action, gravity return Hydraulic Pump : Electric, 220 V AC, 50-60 Hz, 1000 Watt,1 Phase single action, variable speed 6.000 ml reservoir cap max working pressure 50.000 kPa. Single action, gravity return. FoJCe Gauge : Bourdon tube manometer, 280 mm dial dia with max load pointer. Steel box housing. Calibrated by KAN. Compressive : Upper : 180 x 180 mm, ball seating. Platen : Lower : 250 mm dia Clearance : Horizontal : 290 mm Vertical : 310 mm Dimension : 760 x 320 x 1400 mm Weight : ( l x w x h ) approx. 500 kg
