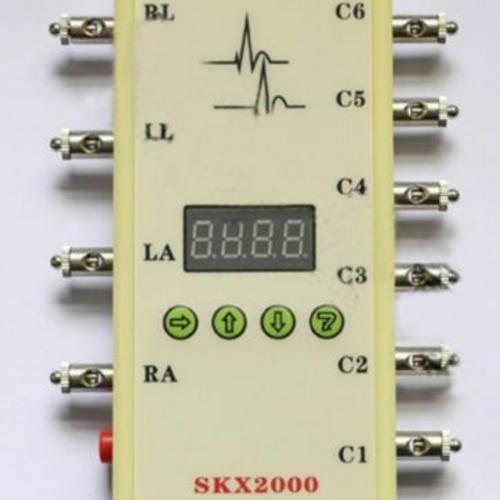

ECG Simulator SKX2000 / EKG Simulator skx2000 signal generator

Note:
1. This Simulator can not test Respiratory wave
2. Simulator LED display tube, when there is no operation key within five seconds, it will automatically shut down, Any key to turn
1. It will show: Normal ECG waveform;” +”” –“ triangular waveform
2. This simulator built-in high-capacity lithium battery, can be recharged, can work long hours;. Because it is a lithium battery, please do not over-discharge. Note: the proper use of the charger, the charger voltage is not higher than 4.2V.
3. Using 10 universal ECG adapter connector can be connected with a variety of ECG machine and lead wire monitors.
4. Charger green light indicates charging is completed, the red light indicates the low battery.
5. Increase the battery power is low automatic shutdown function to protect the lithium battery
Waveform method of operation:
ECG:
1. Heart rate setting range: 10-200 bpm; (initial value: 60 bpm)
2. Signal amplitude fixed
” +”” –“ triangular waveform:
1. Frequency range: 10-300 bpm; (initial value: 75 bpm)
2. Amplitude range: 0.1-4Mv (10: 0.1kV, 400: 4mV)
3. Two modes, Mode 1: Forward waveform, Mode 2: negative waveform; selected by key combinations
Signal amplitude setting:
1. Amplitude range: 0.1mV-4mV (10: 0.1kV, 400: 4mV); (initial value: 100)
2. This margin setting will affect all waveforms.
3. Signal amplitude settings can not affect the ECG waveform amplitude.

Package included :
1 x NEW SKX2000 ECG Signal Simulator LED Display ECG Signal Generator 10-200bpm
