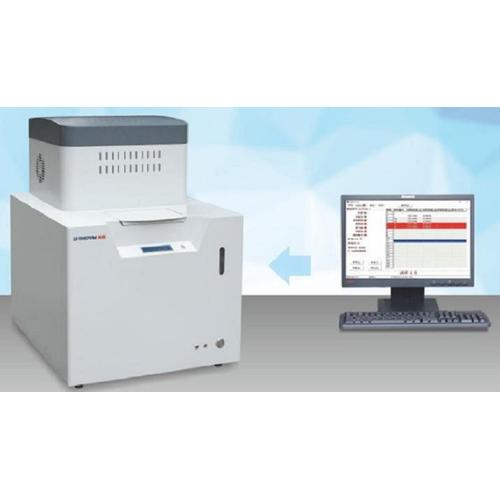

TGA Analyzer Proximate /Automatic Moisture Analyzer - TR-FX7706b

Application Area : It is applicable in the industry such as electrical power, coal, commerce inspection, environment protection, metallurgy, papermaking, petrochemical, earth probe and the research institute or quality inspecting organization to test the content of air-dry basis moisture, ash, LOI, and Volatile Matter in the coal. The instrument can also automatically calculate Calorific Value and the content of fixed carbon and hydrogen in the samples Technical Parameter : Temperature control range ： RT+10～1000℃ Temperature control accuracy ： ±2℃ Sample weight ： 0.5～1.2g、 1±0.1g is recommended Sample number ： 20samples/time Testing time ： 180min/20sampels(classic method),100 min/20samples(quick method) Power Supply ： AC 220V±22V/50Hz Power ： ≤6kW 7706A Dimension(mm)： 630×560×580 Weight (kg) : 90 7706B Dimension(mm)： 560×560×750 Weight (kg) : 80 For TR-SF7340 Full Automatic Moisture Analyzer Technical Parameter : Temperature control range ： RT+10～150℃ Temperature measurement resolution ： 0.1℃ Temperature control accuracy ： ±2℃ Sample weight : total moisture 10～12g (parti size≤6mm) air-dry moisture 1±0.1g (parti size≤0.2mm) Number of samples : 20 samples/time Test time: according to the national standard, or constant weight, about 20min ~ 40min Working power supply： AC220V±22V/50Hz Power： ≤2.0kW Machine size（ mm）： 580×650×660 Weight（ kg）： 75 Harga yang tertera bukan merupakan harga asli Harga sewaktu2 dapat berubah, karena kami tergantung kurs dollar/Euro Karena itu untuk pemesanan agar kontak kami terlebih dahulu Untuk pemesanan unit apabila harus impor kurang lebih selama 60 hari Untuk keterangan lebih lanjut hubungi WA 0882-1405-7997 /0813-1766-3866 - Nugroho /Nauval (CV. Bestari Setia Abadi)
